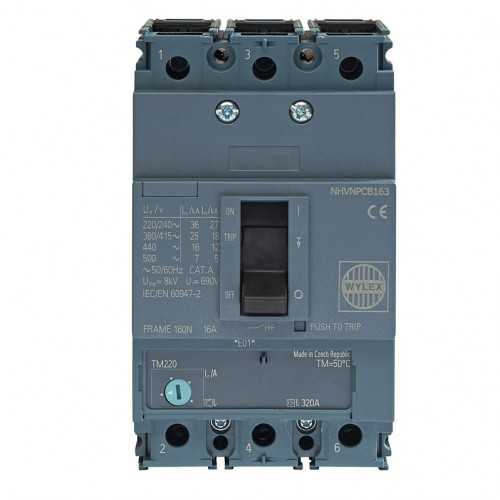

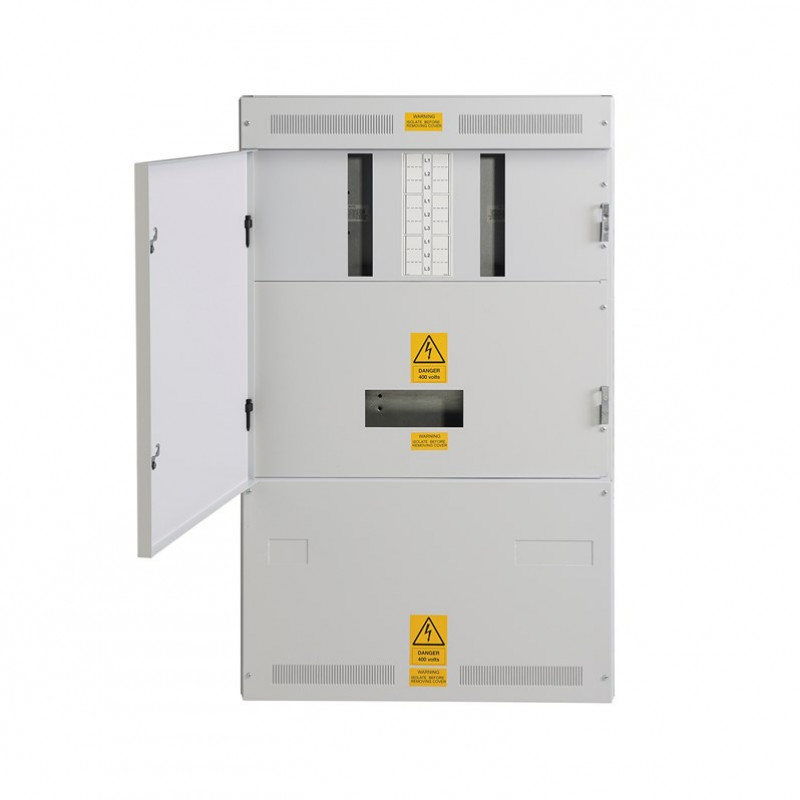

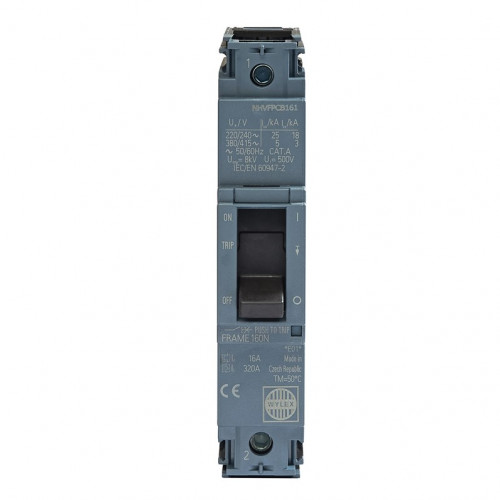

TP or 4P Switch Disconnector, MCCB or direct connection incomer options available with a NHVA part number prefix. Accepts Wylex NH VM160 fixed or adjustable SP or TP MCCBs from 16A to 160A. Utilising a NHVM3P2502 enclosure allows for the addtion of two 200A or 250A TP MCCBs. Accepts both integral incoming metering (Pulsed output/Modbus or MID) and integral Type 1, Type 2, or Type 1 and 2 surge protection. Form 3B Type 2 Form of Separation, IP3X with door closed, Icw = 35kA for 1s, Type tested and ASTA certified. RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3.

• Form 3B Type 2 form of separation
• IP3X with door closed – steel manufacture
• Type tested and ASTA certified
• Fault rating: 35kA for 1 second
• 3-phase, 3-pole configuration
• Main switch rated current: 400A
• 6 Type B ways
• Lockable unit
• Dimensions (H x W x D): 1132 x 700 x 198mm
• BS EN 61439-2
