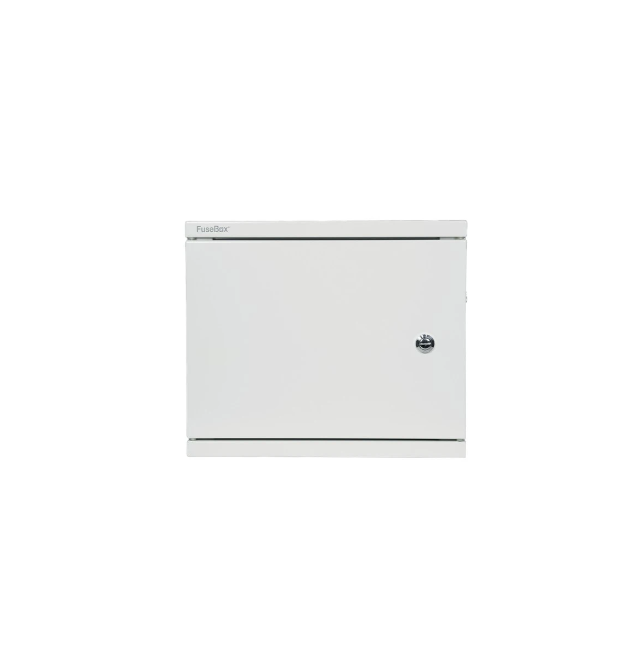

The FuseBox HTPNSPDT2 Horizontal TPN Distribution Board is a compact three-phase distribution solution supplied prepopulated with a 100A 4-pole main switch and Type 2 surge protection device (SPD). Designed for installations where vertical wall space is restricted, its low-profile 295mm-high enclosure is ideal for electrical cupboards, commercial utility areas, industrial environments and other space-limited applications.
The horizontal design provides a spacious internal layout to simplify cable routing, wiring and termination. Installer-friendly features include a fixed horizontal busbar, removable raised DIN rail and aligned earth and neutral bars, providing convenient access and helping achieve a neat and efficient installation.
Manufactured from robust 1.2mm steel with a RAL9001 powder-coated finish, the HTPNSPDT2 features top and bottom gland plates for flexible cable entry. The reversible door can be fitted to either side, while the coin-slot door lock provides secure and convenient access.
Key Features
- Horizontal TPN distribution board
- Prepopulated configuration
- Supplied with 100A 4-pole main switch
- Type 2 surge protection device (SPD)
- Compact 295mm-high design for restricted spaces
- Fixed horizontal fork-type busbar
- Spacious internal layout for easier cable routing and termination
- Removable and raised DIN rail for improved wiring access
- Aligned earth and neutral bars for faster and tidier wiring
- Coin-slot door lock for secure and convenient access
- Top and bottom gland plates for flexible cable entry
- No knockouts for greater flexibility when glanding
- Reversible door can be fitted to either side
- Easily removable devices
- Robust 1.2mm steel enclosure
- Surface-mounted installation
- IP3X rated enclosure
- 16kA short-circuit rating
