• ABB 2CSF204001R1250 F204AC-25/0.03 RCCB

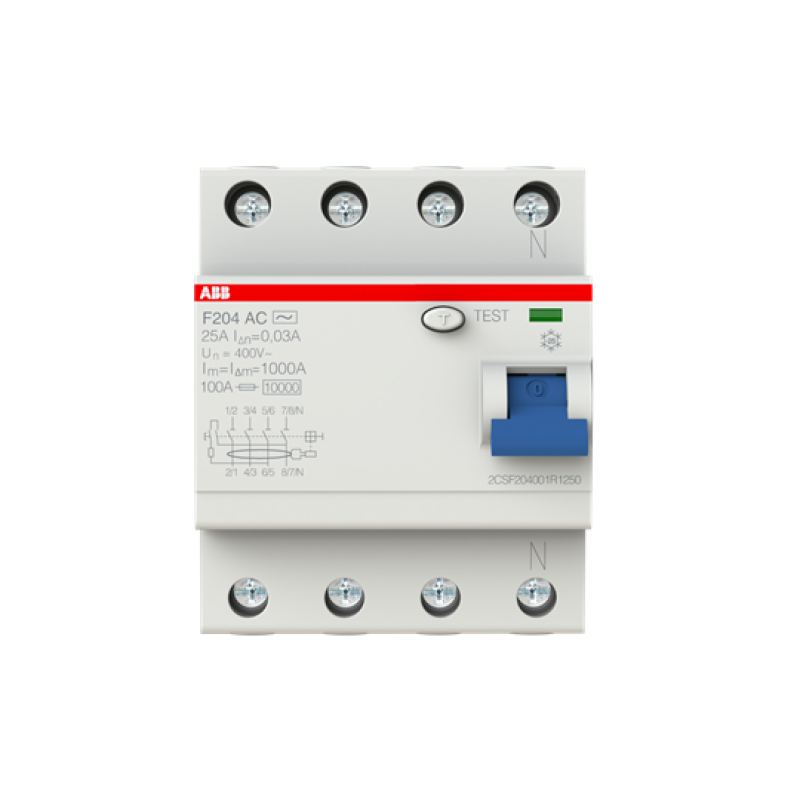

ABB 2CSF204001R1250 F204AC-25/0.03 RCCB

Model: F204AC-25/0.03

  • £153.15 inc VAT

  • £127.63 ex VAT

In Stock

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications.


  • Standards:
    IEC/EN 61008
    UL 1053
  • Operating Characteristic:
  • Type of Residual Current:
    AC type
  • Rated Residual Current:
    30 mA
  • Rated Current (In):
    25 A
  • Number of Poles:
  • Position of Neutral Terminals:
  • Power Loss:
    at Rated Operating Conditions per Pole 1.3 W
  • Rated Voltage (Ur):
    230/400 V
  • Rated Frequency (f):
    50...60 Hz


  • Ambient Air Temperature:
    Operation -25...55 °C
  • RoHS Status:
    Following EU Directive 2011/65/EU

Technical UL/CSA

  • Maximum Operating Voltage UL/CSA:
    480Y / 277 V AC
  • Short-Circuit Current Rating (SCCR):
    0.03 mA
