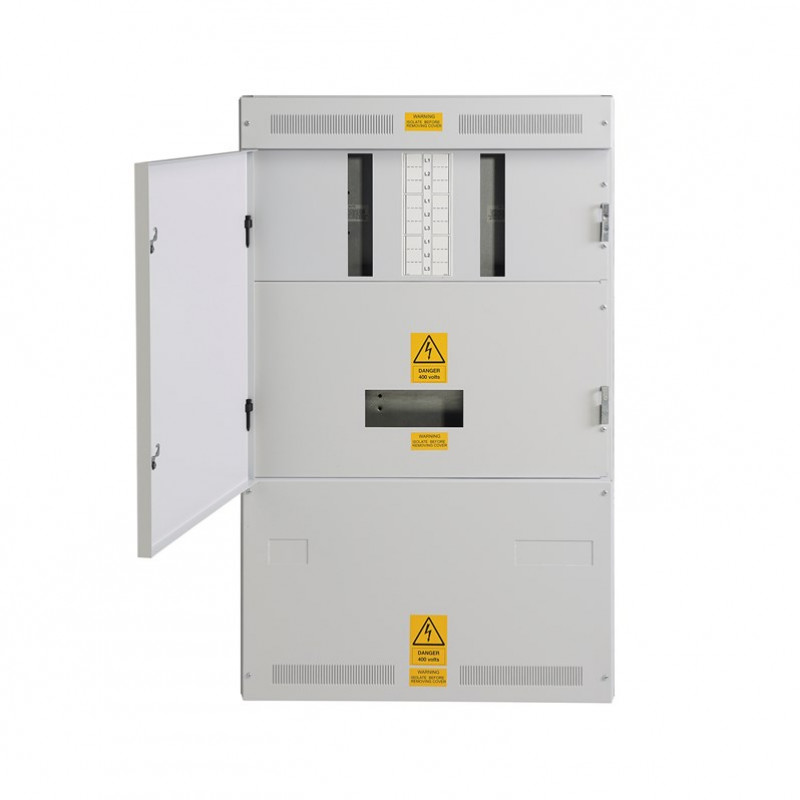

Wylex NH VM160 630A 6-Way 3P+N Panel Board
£1,130.15 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£941.79 Ex VAT ( FREE UK Delivery On Orders Over £150* )
In stock for collection at our Wigan Branch - free 2-3 day delivery within 30 miles of any of our branches (North West). Additional charge applies for delivery further than 30 miles from our branches. A member of our team will contact you to arrange delivery.
TP or 4P Switch Disconnector, MCCB or direct connection incomer options available with a NHVA part number prefix. Accepts Wylex NH VM160 fixed or adjustable SP or TP MCCBs from 16A to 160A. Utilising a NHVM3P2502 enclosure allows for the addition of two 200A or 250A TP MCCBs. Accepts both integral incoming metering (Pulsed output/Modbus or MID) and integral Type 1, Type 2, or Type 1 and 2 surge protection. Form 3B Type 2 Form of Separation, IP3X with door closed, Icw = 35kA for 1s, Type tested and ASTA certified. RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3.
- Form 3B Type 2 form of separation
- IP3X with door closed - steel manufacture
- Type tested and ASTA certified
- Fault rating: 35kA for 1 second
- 3-phase, 3-pole configuration
- Main switch rated current: 630A
- 6 Type B ways
- Lockable unit
- Dimensions (H x W x D): 1132 x 700 x 198mm
- BS EN 61439-2
Excludes next day delivery.
