• WYLEX MCB 3P 32A 10KA PSB332-D

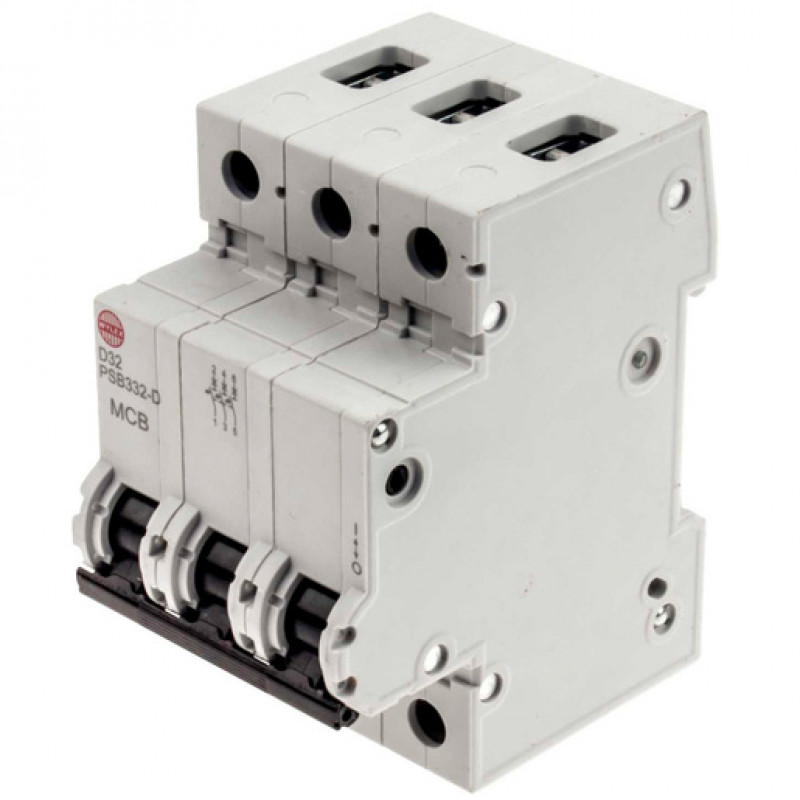

WYLEX MCB 3P 32A 10KA PSB332-D

Model: PSB332-D

  • £21.94 inc VAT

  • £18.28 ex VAT

In Stock

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop.

Key Features

  • · 54mm wide modules
  • · Compliant with BS EN 60898 and EN 60947-2
  • · Suitable for use within NH Distribution Board
  • · DIN rail mounting
  • · Easy to operate handle with a trip-free toggle mechanism
  • · 30°C calibration temperature

Miniature Circuit Breaker (MCB)
Miniature circuit breaker (MCB)
FeatureFeature details
Voltage typeAC
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V15 kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icn EN 60898 at 230 V10 kA
Rated short-circuit breaking capacity Icn EN 60898 at 400 V10 kA
Number of poles (total)3
Rated current32 A
Rated voltage400 V
Degree of protection (IP)IP20
Release characteristicD
Frequency50 - 60 Hz
