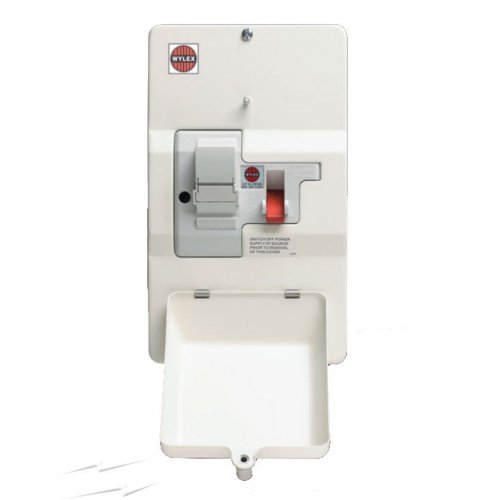

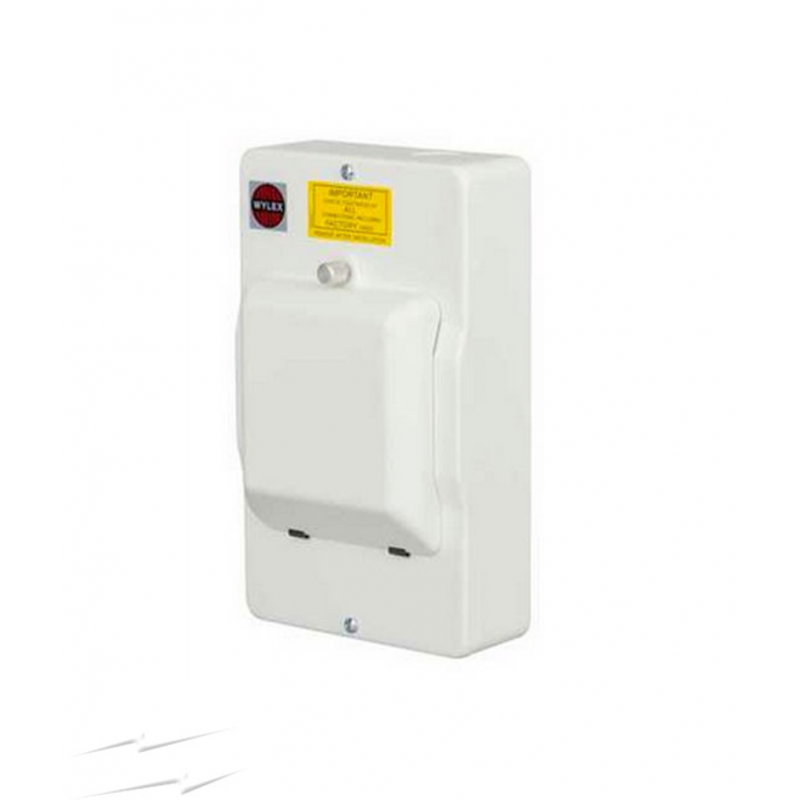

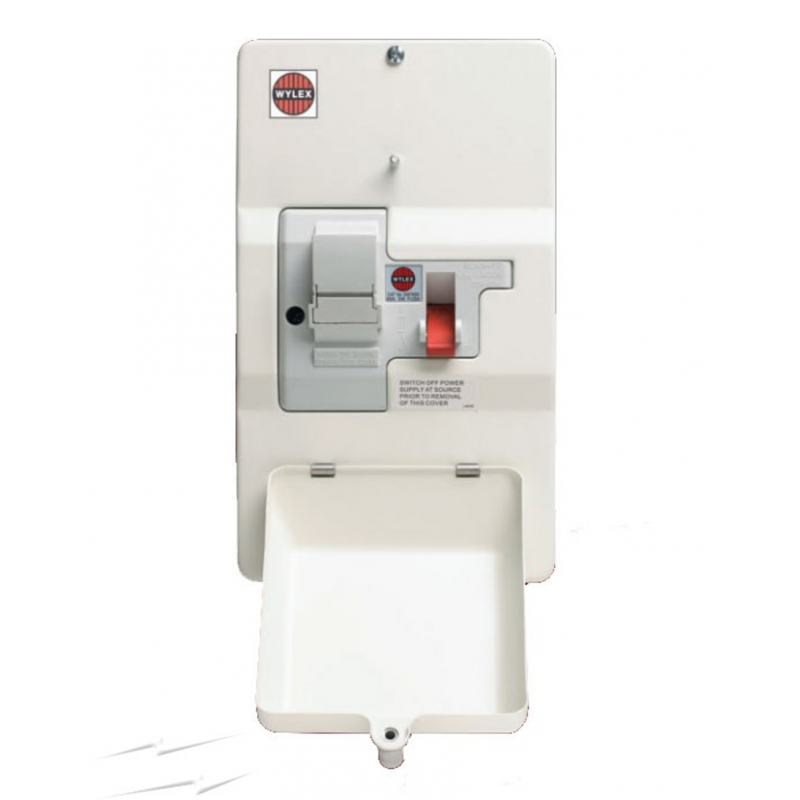

The Wylex DSF60M is a dedicated 60A all metal sub main switch fuse designed to be used in domestic premises making the installation and connection of sub mains or system extensions quick and easy. Particularly suited to when larger single occupancy buildings are being converted into several individual apartments

Fully Amendment 3 compliant ensuring it meets the latest fire regulations it supplied complete with a 60A BS1361 fuse fitted. The enclosure is finished in low smoke & fume paint includes a metal door that is screw retained.

Key Features

• Screw retained cover

• 32mm standard knock out for cable gland – top & bottom

• Dual screw terminals throughout

• Metal Door and Robust metal enclosure (1.0mm Thick) Steel
Construction

• Live and Neutral cable capacity 16mm² min, 35mm² max

• 16mm Earth terminating point inside enclosure

• Supplied complete with fuse (100A, 80A or 60A)

• Low smoke & fume paint finish

• Lockable mechanism for isolation safety purposes

• Rotating fuse carrier for easy withdrawal
