  • WYLEX 10W METAL CLAD CONSUMER UNIT

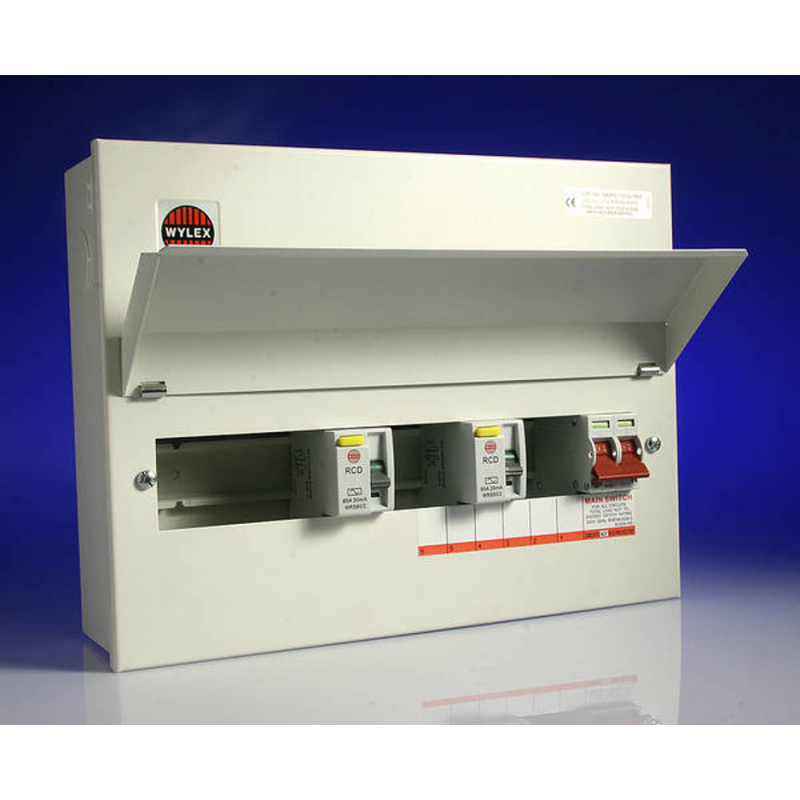

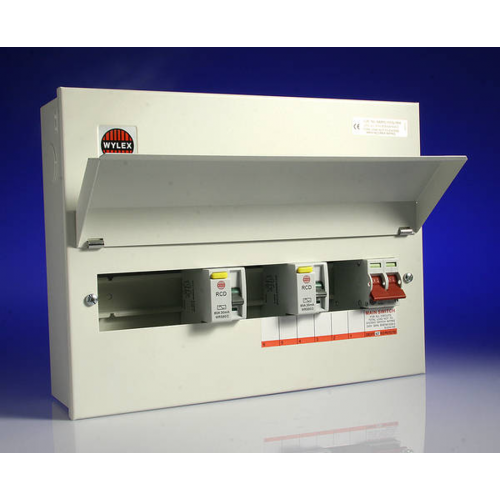

WYLEX 10W METAL CLAD CONSUMER UNIT

Model: NMRS10SSLMHI

  • £102.54 Inc VAT ( FREE UK Delivery On Orders Over £150* )

  • £85.45 Ex VAT ( FREE UK Delivery On Orders Over £150* )

Product: In Stock

Uses a flexible configuration to provide the optimal combinations of RCD protected circuits
and circuits with individual RCBO or MCB protection
Almost unlimited combinations

1 x 100 Amp DP Main switch controls the entire board and allows for up to 5 x RCBO's or MCB's circuits
2 x 80 Amp 30mA RCD allowing form RCD circuits to be split around a building

Max No of MCB's or RCBO's = 10

Key Features

  • All metal enclosure, no external plastic parts
  • Low Smoke & Fume paint
  • Compact enclosure
  • Available in ‘no miss terminal’ fixed busbar versions and flexible versions
  • Raised & removable DIN rail / busbar assembly
  • Cable entry knockouts on 5 sides, top, bottom, left, right and rear
  • RoHS compliant in excess of UK standards
  • UKAS certified to BS EN 61439-3
  • Optional
    Non-combustible cover blanks
    Mains tails cable entry grommet / gland for supplementary insulation similar to Class II level of protection to mains tails

Dimensions:
Height: 261mm (max)
Depth: 98mm
Depth with cover: 121mm
Width: 343mm.
