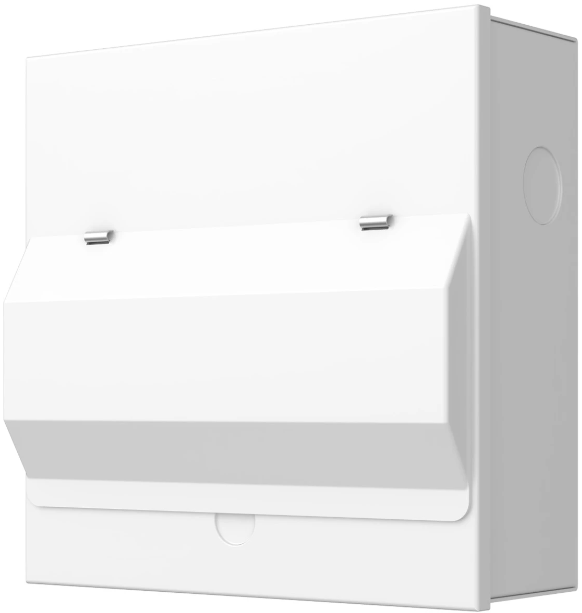

Rolec 20A Three Phase EV Consumer Unit with Type B RCD / MCB – EVIN0080 Details

Rolec’s Three Phase Consumer Unit is a perfect addition that can be added to your charging point installation requirements as a solution that matches the needs within both domestic and commercial spaces. The range of Consumer Units from Rolec is an ideal addition that suits mnay features including distributing power, providing short circuit, overcurrent and earth leakage protection whilst also allowing for a safe and streamlined installation process for electrical contractors. With many certifications and compliances, the Rolec Consumer Unit is perfect for connecting to your charging points ideal for your electric vehicle needs.

Key Features

• Colour: Grey
• Dimensions: 240 x 240 x 105mm
• Material: Epoxy Polyester Powder Coated Steel
• Rated Current: 20A
• Input Voltage: 400VAC/50Hz (Three Phase)
• Fault Protection: 20A 4P 6KA MCB & 63A 30mA 4P Type B RCD
• Terminals: >16mm
• Operating Temperature: -25℃ to 55℃
• Platinum Range Switchgear
• IP40 Rated
• IK10 Impact Rating
• CE Certified
• 1 Year Manufacturer Guarantee
