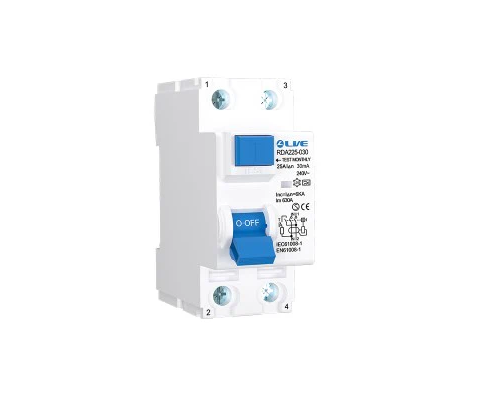

LIVE Electrical RDA225-030 2 Pole 25A 30mA Type A High Immunity RCD

2 Pole Type A Residual Current Devices (RCD)

Specification:

• Pole No.: 2
• Rated current(A):25
• Rated voltage: 240/415V AC
• Rated frequency: 50/60Hz
• Rated residual operating current I?(mA):30
• Rated residual non operating current: 0.5I?n
• Rated conditional breaking current Inc: 6000A
• Tripping duration Instantaneous tripping?0.1s
• Residual tripping current range:0.5I?n~l?n
• Electro-mechanical endurance:4000cycles
• Connection capacity Rigid conductor up to 25mm2
