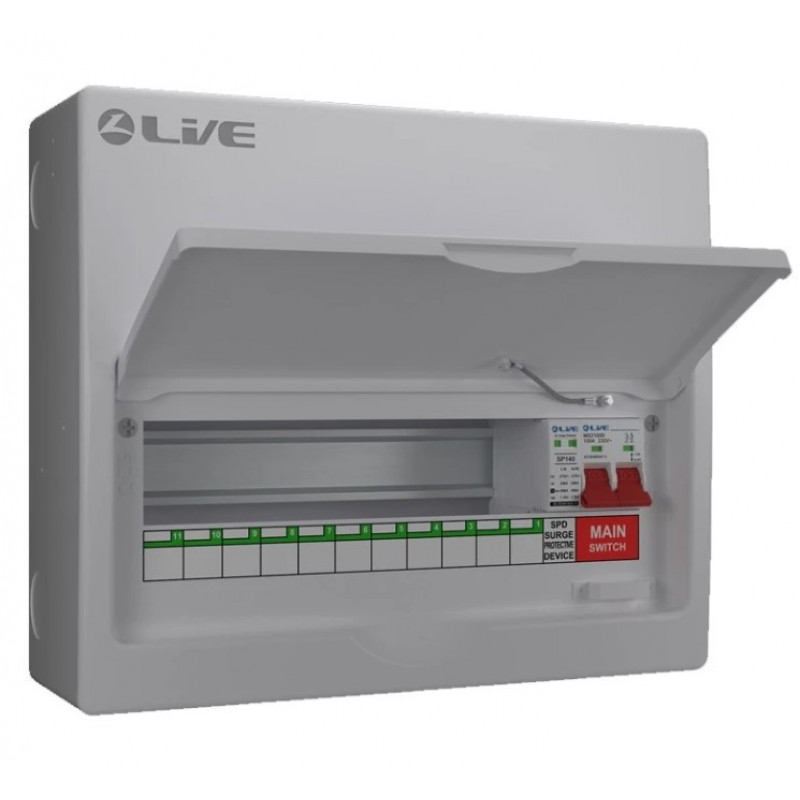

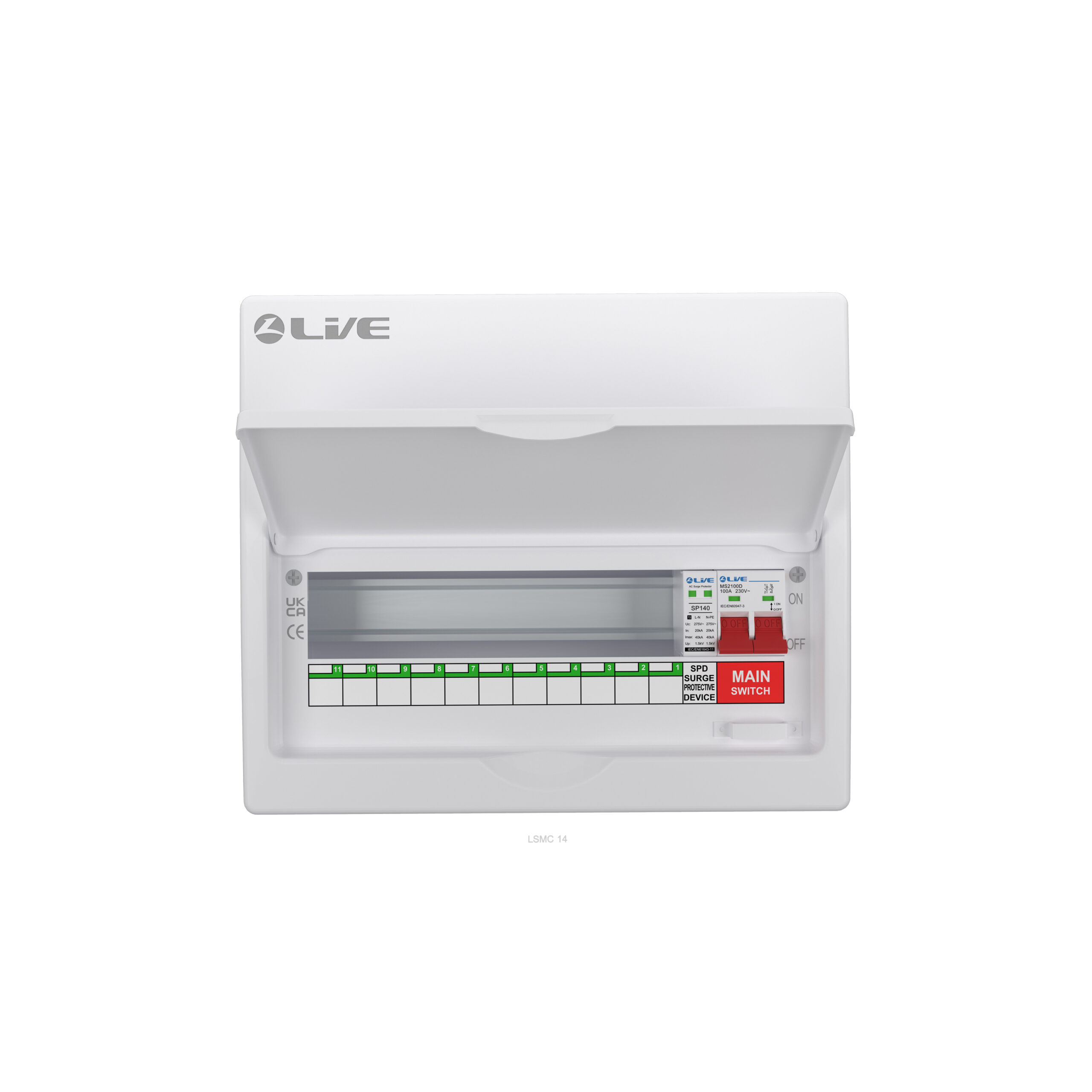

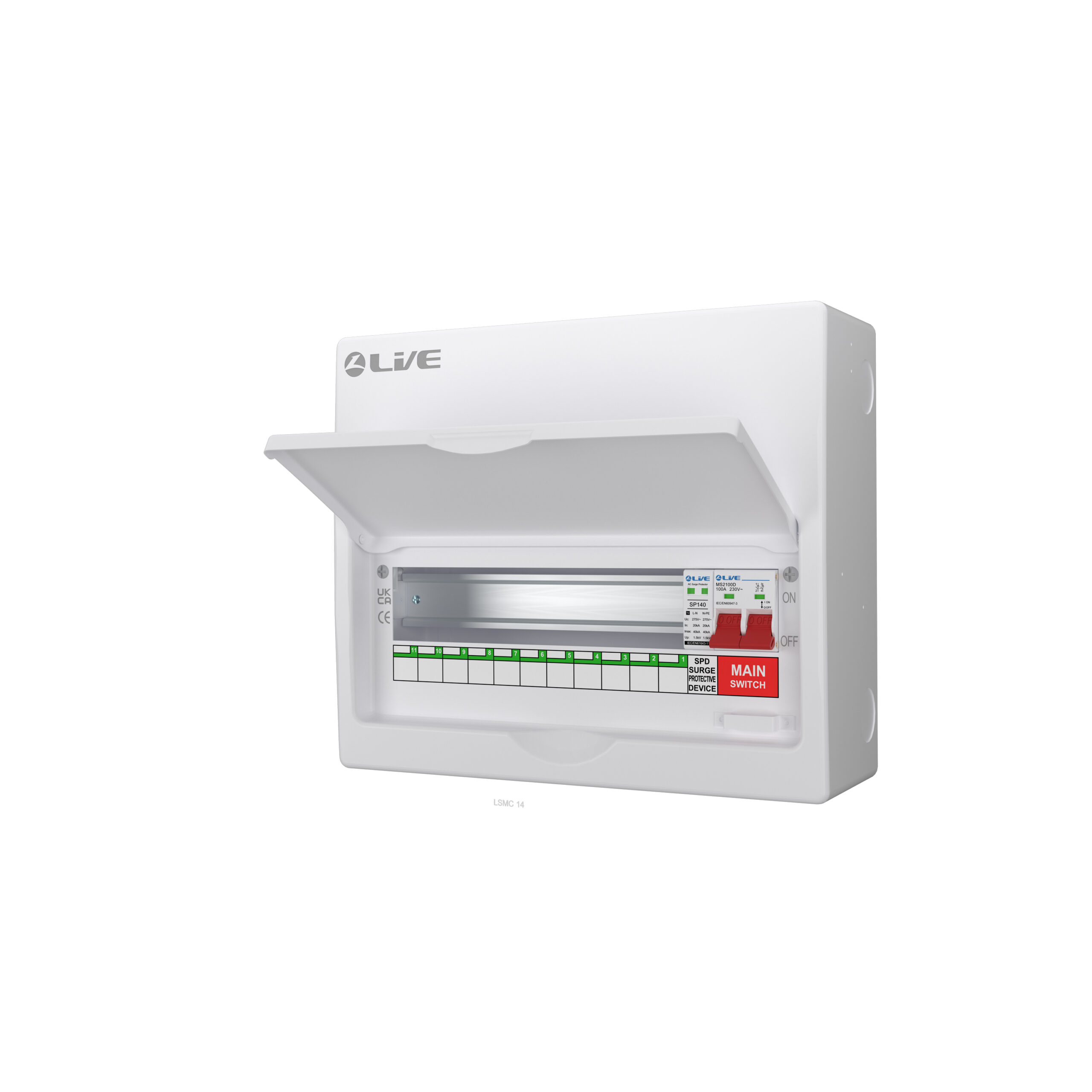

The new Live Electrical Consumer Units come with raised key holes to ensure the unit is secure, it also comes with circular cable entry knock-outs at the top and bottom. The unit is finished in a white polyester powder coat to RAL9010 standards.

Specifications:

11 Usable Way
Fitted with 20/40kA DP SPD (SP140 1P+N/1)
Fitted with DP 100A Main Switch
Dimensions (W x H x D): 316 x 270 x 110 mm
Consumer unit enclosure supplied with neutral cable, busbar, neutral & earth terminals, DIN rail.
