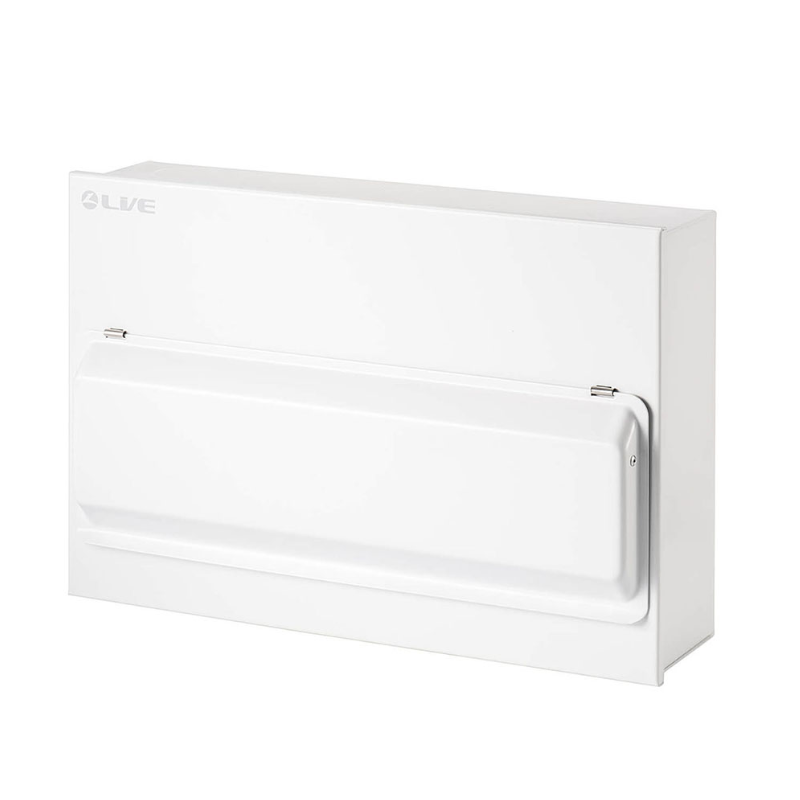

Robust powder coated steel consumer units with drop-down metal lid and surge protection brought to you by Live Electrical. his consumer unit is supplied with a 100A double pole mains switch and 20/40kA double pole type 2 surge arrester. Also pre-fitted with tail clamp and spirit level as standard. It offers 4 useable ways and an IP40 protection rating. Incorporates multiple cable entry knockouts on the top, bottom, sides, and larger knockouts on the rear.

• Fully enclosure metal construction body with drop down metal cover and metal lid.
• Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 40mm on the sides, and back plus larger rear slots.
• Raised key holes for secure easy installation.
• Modern style finished in white polyester powder coating to RAL9010.
• Fitted with Earth/Neutral Terminal Bar and Busbar.
• Raised Din Rail improves cable routing.
• Large and accessible wiring space.
• Flexible connection allows for various configurations of protected ways.
• Standard: BS EN6164-11, BS EN60947-3, BS EN61439-3
• HxWxD - 252x197x110mm
