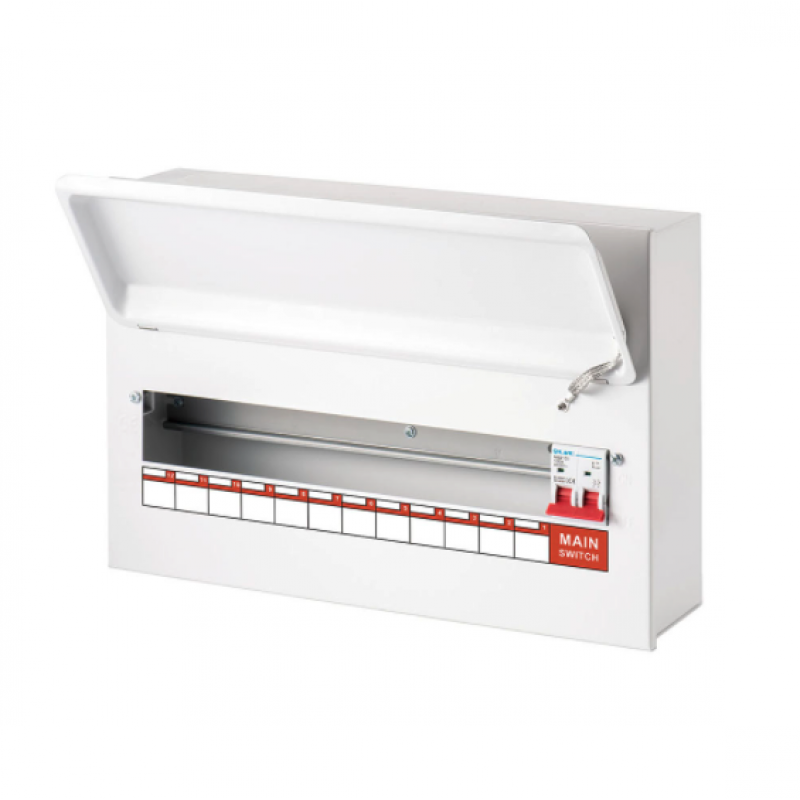

Live Electrical 6 Way Metal Clad Consumer Unit c/w 100A Main Switch (4 Usable Ways)
Model: LHMC06/100
Live Electrical 6 Way Metal Clad Consumer Unit c/w 100A Main Switch (4 Usable Ways)
Model: LHMC06/100
-
£21.38 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£17.82 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
Consumer units are supplied with DP 100A main switch. They are fitted with a busbar for MCBs or RCBOs which can be removed to fit other modular components.
- Fully enclosed metal construction body with drop down metal lid.
- Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 40mm on the sides, and back plus larger rear slots.
- Raised key holes for secure easy installation.
- Raised Din rail improves cable routing.
- Modern style finished in white polyester powder coating to RAL9010.
- Large and accessible wiring space, with extra space for RCBOs.
- Flexible connection allows for various configurations of protected ways.
- Complies with BS EN61008, BS EN60898, BS EN61439-3
- Dimensions: HxWxD 252x161x110mm
- Operating Voltage: 230/50Hz
- Maximum Load(A): as indicated on incoming device
- Material: manufactured from robust steel
- Protection Degree: IP40
- Standard: BSEN61008, BS EN60898, BS EN61439-3
- Operating Voltage: 230/50Hz
- Maximum Load(A): as indicated on incoming device
- Material: manufactured from robust steel
- Protection Degree: IP40
- Standard: BSEN61008, BS EN60898, BS EN61439-3
