Description & features

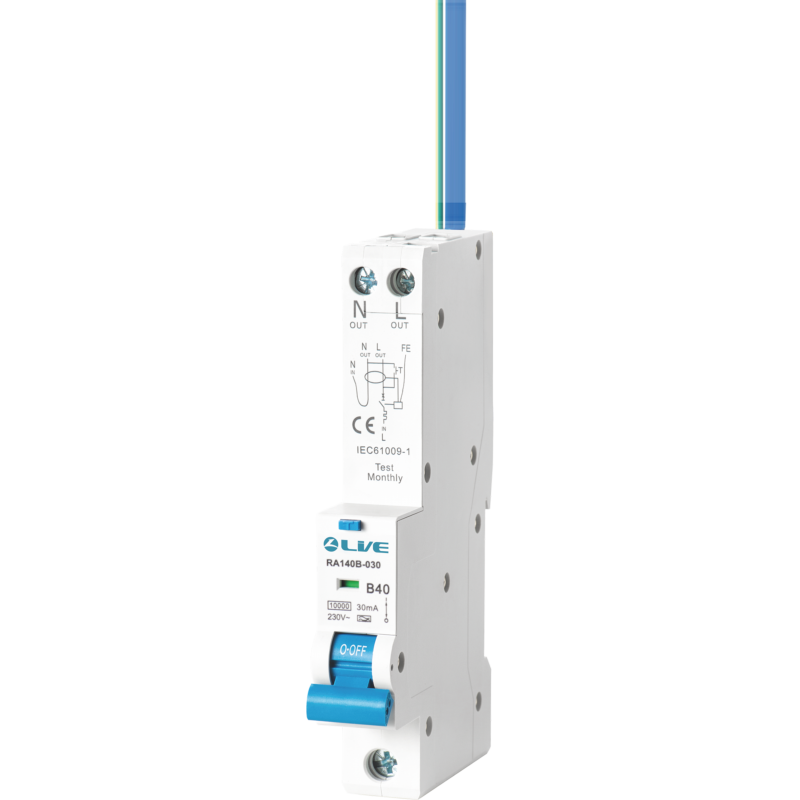

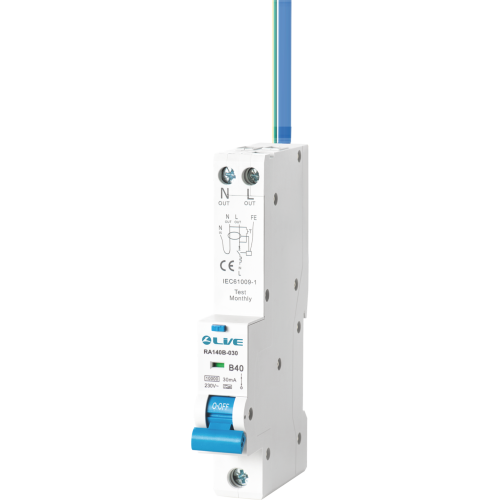

High immunity RCBO is an ideal solution for providing over current & earth leakage protection. They ensure reliable protection to people & installation in networks having pulsated DC, harmonics & transients currents, while maintaining continuity of supply by reducing nuisance tripping. Handle can be locked with pad-lock to prevent unwanted operation for safety.

• Rated current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A , 63A
• Rated Voltage (Ue): 230V AC.
• Breaking capacity (Icn): 10kA.

• Rated residual current: 30mA
• Tripping characteristics: C Curve

• Electrical endurance: 4000 cycles.
• Mechanical endurance: 10000 cycles.
• Complies with BS EN 61009-1.
• Type: A
