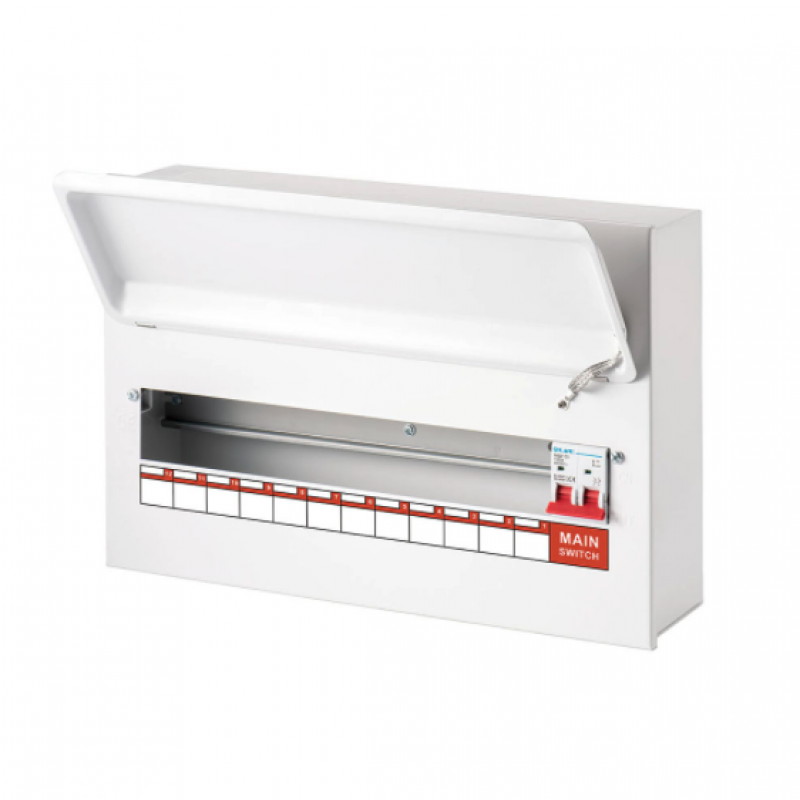

Live Electrical 18 Way Metal Clad Consumer Unit c/w 100A Main Switch (16 Usable Ways)

Model: LHMC18/100

Live Electrical 18 Way Metal Clad Consumer Unit c/w 100A Main Switch (16 Usable Ways)
Live Electrical 18 Way Metal Clad Consumer Unit c/w 100A Main Switch (16 Usable Ways)

Live Electrical 18 Way Metal Clad Consumer Unit c/w 100A Main Switch (16 Usable Ways)

Model: LHMC18/100

  • £36.54 Inc VAT ( FREE UK Delivery On Orders Over £150* )

  • £30.45 Ex VAT ( FREE UK Delivery On Orders Over £150* )

Product: In Stock

Consumer units are supplied with DP 100A main switch. They are fitted with a busbar for MCBs or RCBOs which can be removed to fit other modular components.

  • Fully enclosed metal construction body with drop down metal lid.
  • Multiple circular cable entry knock-outs (25&32mm) on the top and bottom, 40mm on the sides, and back plus larger rear slots.
  • Raised key holes for secure easy installation.
  • Raised Din rail improves cable routing.
  • Modern style finished in white polyester powder coating to RAL9010.
  • Large and accessible wiring space, with extra space for RCBOs.
  • Flexible connection allows for various configurations of protected ways.
  • Dimensions: HxWxD 252x377x110

  • Operating Voltage: 230/50Hz
  • Maximum Load(A): as indicated on incoming device
  • Material: manufactured from robust steel
  • Protection Degree: IP40
  • Standard: BSEN61008, BS EN60898, BS EN61439-3
