Part of the next generation of Radio Frequency Wireless Interconnection.

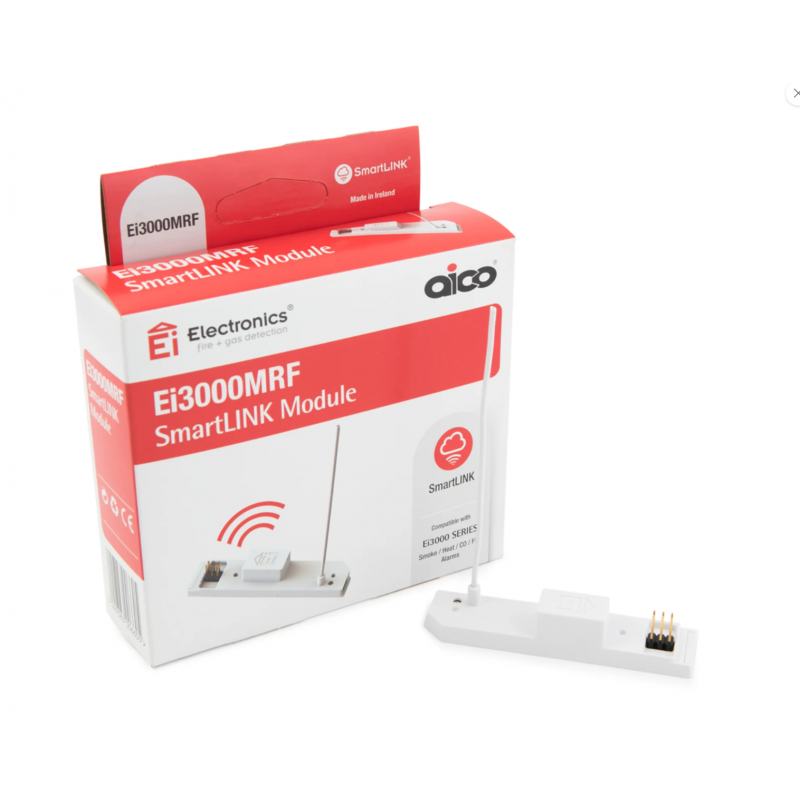

The Ei3000MRF Module allows for wireless interconnection and data extraction. Simply plug in to any 3000 Series alarm.

• Powered from alarm head
• Add this to an Ei3000 series alarm to allow for SmartLINK interconnection and data extraction
• Compatible with other Aico wireless interconnection products
• Interconnect up to 12 smoke alarms and devices wirelessly
• Real-time configurable notifications
• Full visibility of your connected SmartLINK systems
• Forecast alarm replacements and maintenance
• Remote Alarm Learn entry
• Transmits, receives and repeats RF specific data
• RF mesh architecture
• Unique House Coding feature
• RF Data Download

It enables wireless interconnection with up to 12 other SmartLINK / RadioLINK compatible devices and supports hybrid communication allowing for devices to be hardwired or wirelessly interlinked.

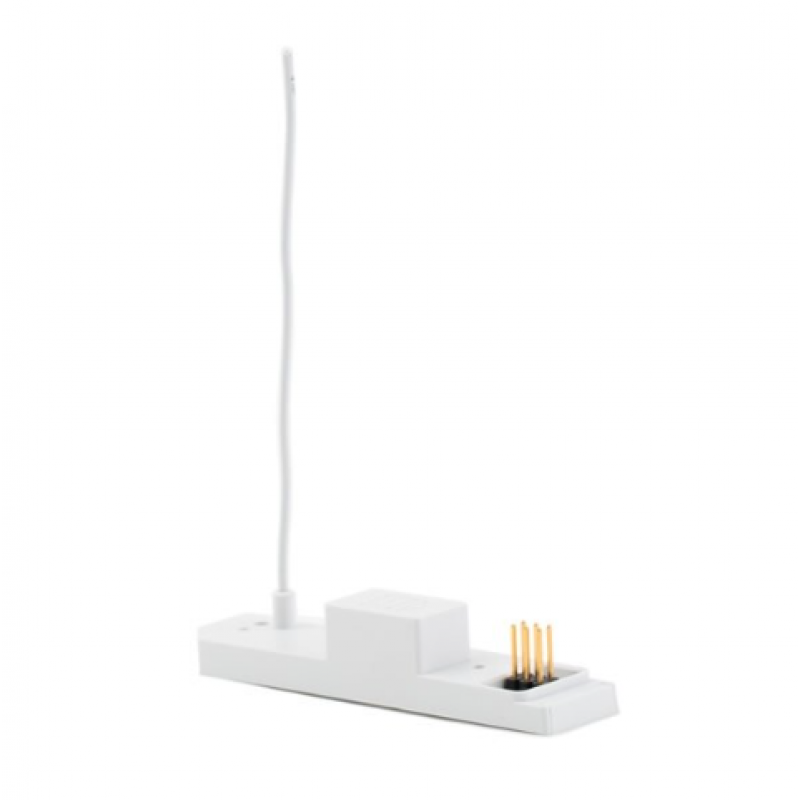

This module simply plugs into the designated slot on the back of all Ei3000 series alarm heads. No external parts are left exposed as the small antenna is fully enclosed within the alarm unit once fitted. Once the alarm is powered up, the RF LED on the side of the alarm device will flash red, blue and green which indicates that the module is correctly fitted and operating.

The Ei3000MRF is a short-range device which uses a transceiver to receive, transmit and repeat the RadioLINK RF communication protocol. This ensures a robust "mesh" of RF signals and reliable paths of communication. The integrated house coding feature restricts the RF communication to designated RF devices only which reduces interference / activation with other nearby RF systems.

The Remote Alarm Learn entry feature enables the installer to re-instate the full RF system house code from a single device. Additional devices can then be added to the system and coded accordingly.

Simply fit this module into any Ei3000 series alarm for wireless interconnection with other compatible devices, data extraction and real-time notifications of alarm events and activations via the SmarkLINK Gateway and Portal.
