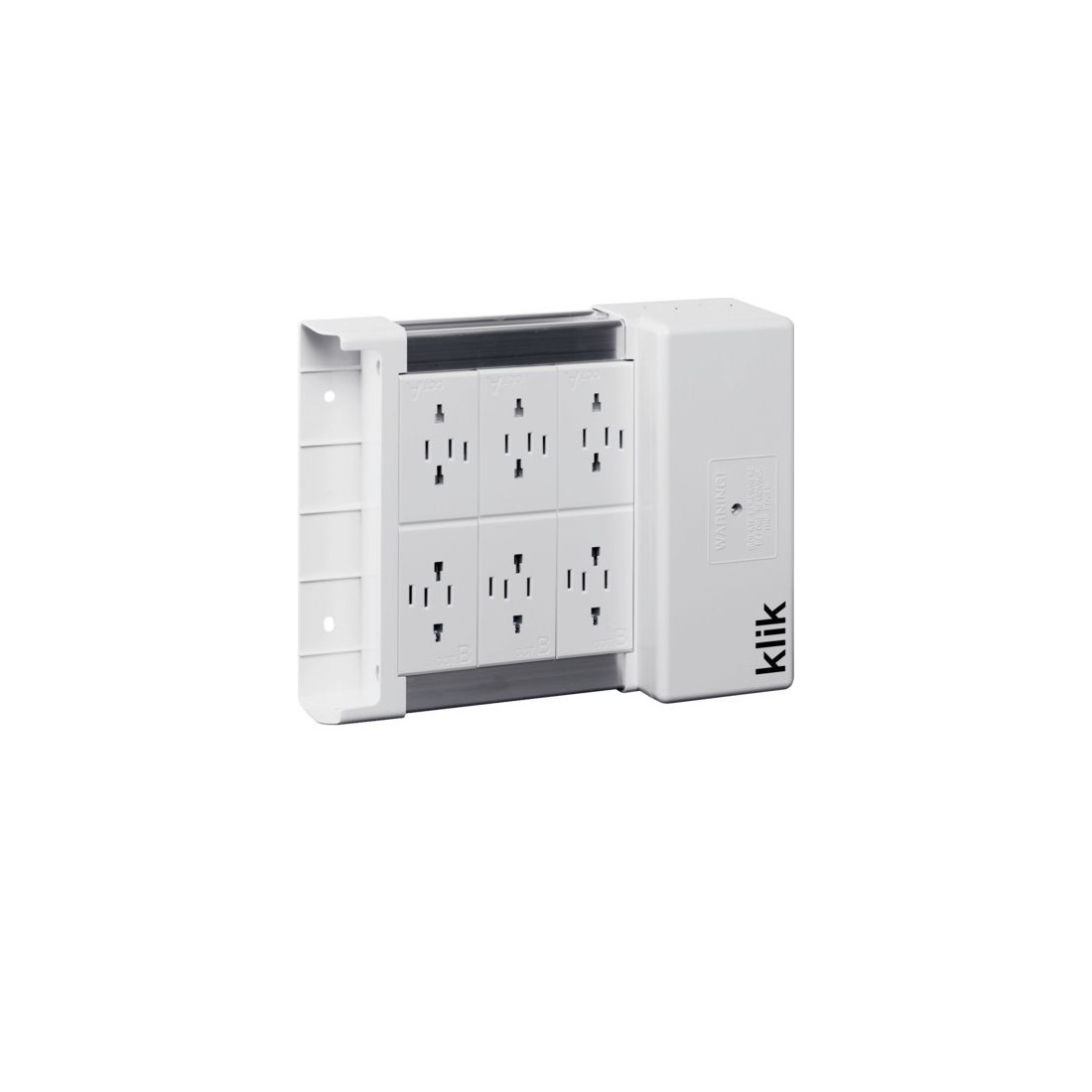

The Hager KLDS6 Klik is a 6 way 6A marshalling lighting distribution box brings plug-in convenience and versatility for lighting. It is a unique modular plug and socket interface that provides simultaneous mechanical and electrical connection in one click-in action.

Speeds up a previously very time consuming job by making it extremely simple to connect a large amount of luminaires to one central power hub. Klik KLDS eliminates the need for on-site wiring of individual fittings in large commercial or industrial projects.

Used in conjunction with 3 and 4 pin Klik plugs, luminaires can be connected in seconds, in absolute safety, without circuit isolation. All live contacts are inaccessible and the earthing connection is made before any other.

Features:

• Hager KLDS6 white 6 way marshalling lighting distribution box
• Finish: White
• Constructed from robust aluminium extruded body
• Number of lighting outlets: 6
• Socket outlets accept either Klik lighting 3 pin or 4 pin plugs or Klik pre-wired leads
• All socket outlets factory connected and tested
• Simple and quick to install
• Easy maintenance
• Dual switch capability
• Can be separated into two independently switched circuits
• Circuits can be controlled via wall switch or occupancy sensor
• Main terminal rating: 16A
• Socket outlet rating: 6A
• Separate terminals for flexible conductors, rating 10A
• Main terminal capacity: 5x4mm²
• Flexible conducter terminal capacity: 1x1mm²
• Suspended by steel fasteners on rod, fixed direct to lighting trunking or directly to ceiling or wall with No.8 screws
• Self-retained cover screws
• UL 94 V0
• Complies with BS 5733:2010
• Dimensions: Width: 288mm | Height: 222mm | Depth: 73mm
