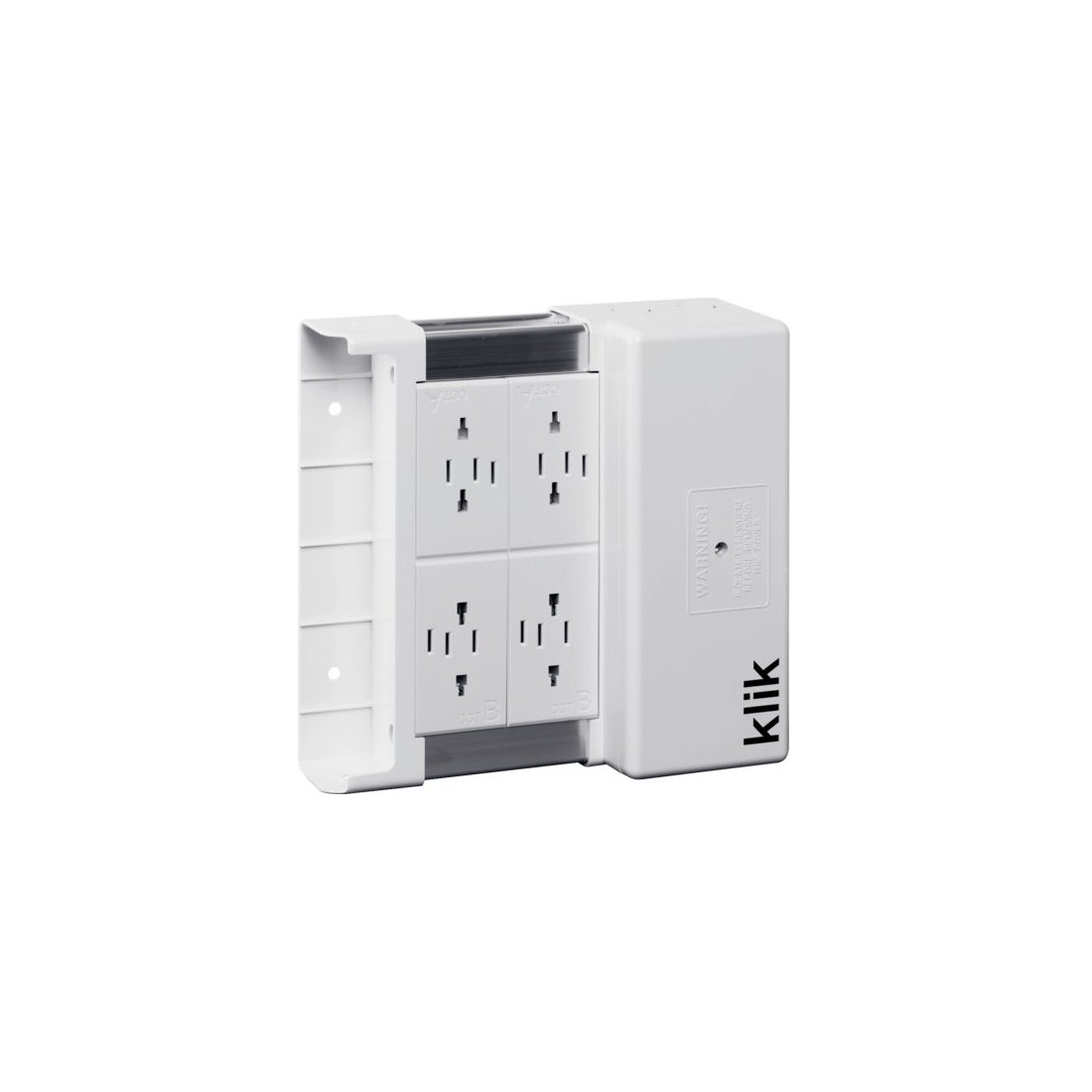

Klik KLDS4 a 4 pin marshalling box part of the Hager Klik lighting distribution connector system. Plug-in convenience and versatility for lighting. It is a unique modular plug and socket interface provides simultaneous mechanical and electrical connection in one click-in action. Used in conjunction with 3 and 4 pin klik plugs luminaires can be connected in seconds, in absolute safety, without circuit isolation. All live contacts are inaccessible and the earthing connection is made before any other. Klik plugs and sockets feature solid brass terminals and phosphor bronze contacts for good conductivity.

Features:

• Hager KLDS4 white 4 way marshalling lighting distribution box
• Finish: White
• Constructed from robust aluminium extruded body
• Number of lighting outlets: 4
• Socket outlets accept either Klik lighting 3 pin or 4 pin plugs or Klik pre-wired leads
• All socket outlets factory connected and tested
• Simple and quick to install
• Easy maintenance
• Dual switch capability
• Can be separated into two independently switched circuits
• Circuits can be controlled via wall switch or occupancy sensor
• Main terminal rating: 16A
• Socket outlet rating: 6A
• Separate terminals for flexible conductors, rating 10A
• Main terminal capacity: 5x4mm²
• Flexible conducter terminal capacity: 1x1mm²
• Suspended by steel fasteners on rod, fixed direct to lighting trunking or directly to ceiling or wall with No.8 screws
• Self-retained cover screws
• UL 94 V0
• Complies with BS 5733:2010
• Dimensions: Width: 238mm | Height: 222mm | Depth: 73mm
