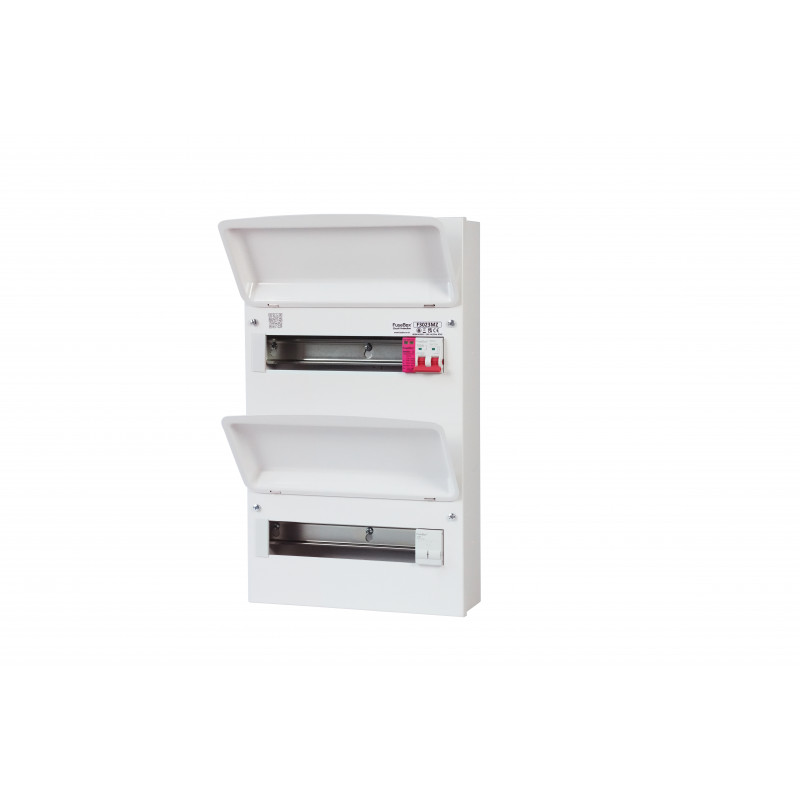

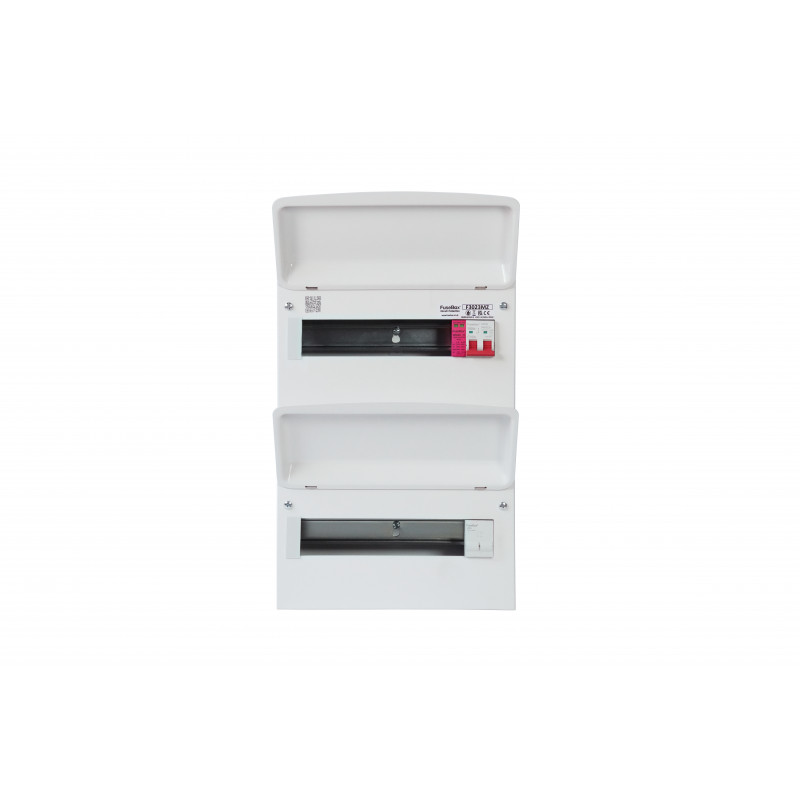

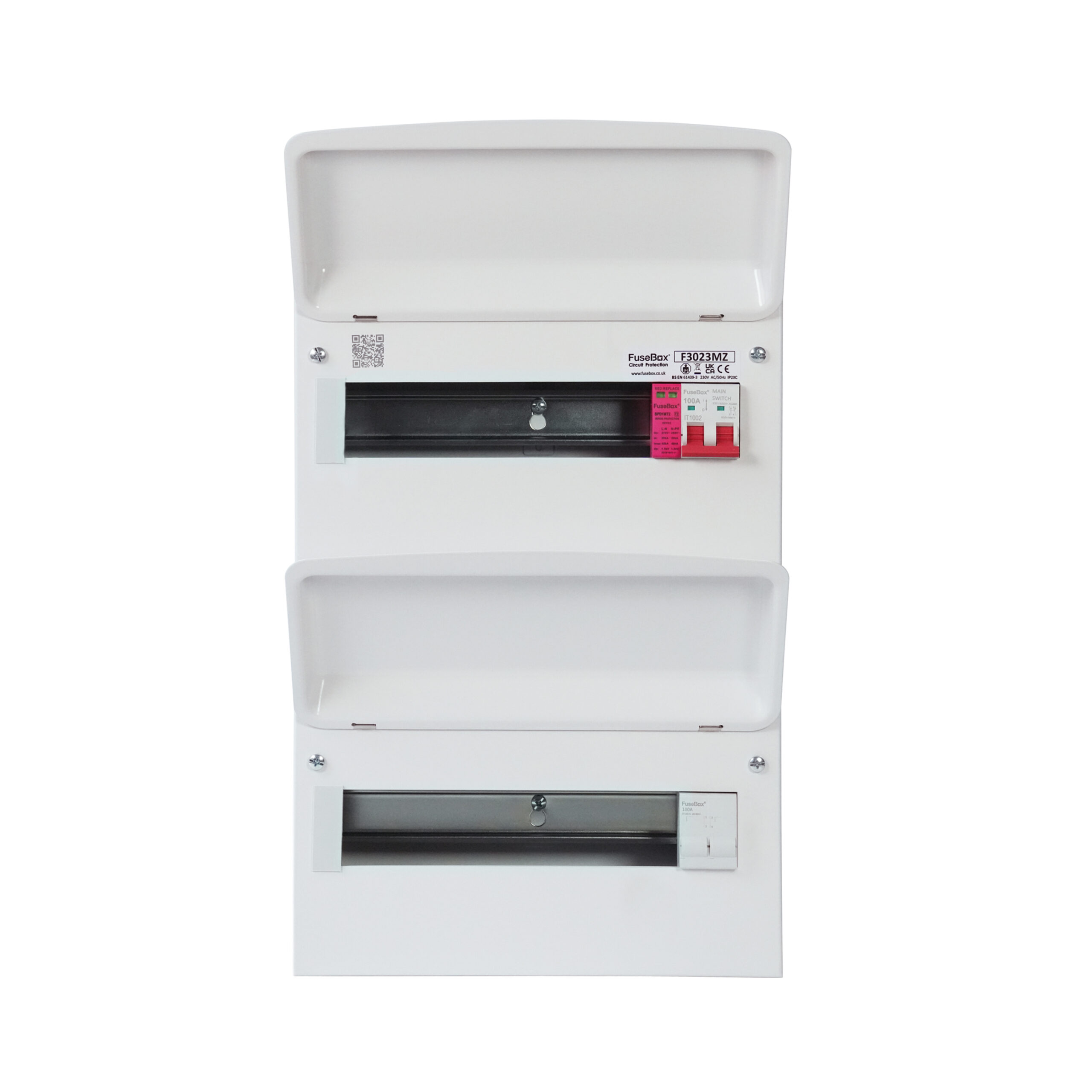

The FuseBox F3023MZ consumer unit features 23 usable ways (11/12 double bank) and comes with 100A Main Switch, A Type 2 Surge Protection device

As with all of the fusebox Surge Protected consumer units, the F3023MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below).

Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip.

• Reinforced grommet strip for enhanced cable protection
• 23 Way SPD main switch consumer unit
• Two extra usable ways for expanded circuit capacity
• Single module Type 2 Surge Protection Device (SPD)
• 100A double bank main switch incomer
• 1mm electro-galvanised steel construction
• RAL 9001 powder-coated finish
• Earth and neutral terminal bars at top
• Removable, raised DIN rail
• Round knock-outs on all faces
• Extra height for RCBOs
• Tail clamp (ACCF) supplied
• Circuit identification labels included
• Captive screws on front cover
• IP20XC rated
• Complies with BS EN61439-3 and 18th Edition

Dimensions: 512mm x 306mm x 113mm (HxWxD)

Updated model replacing F2021MX
