Fusebox F3021MZ 21 Way 100A Main Switch Consumer Unit With SPD
Model: F3021MZ
-800x800.jpg)

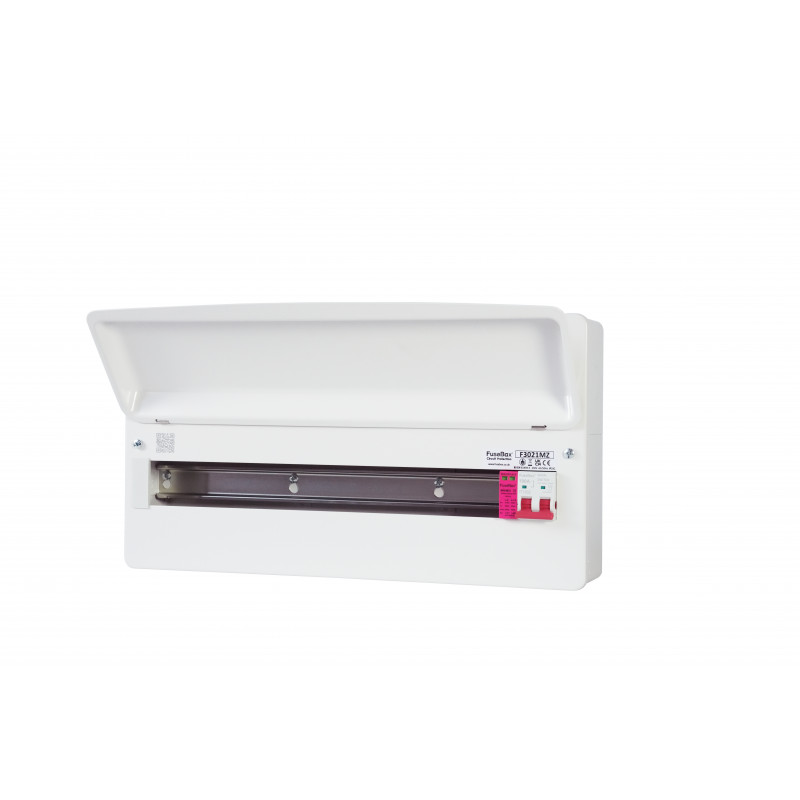

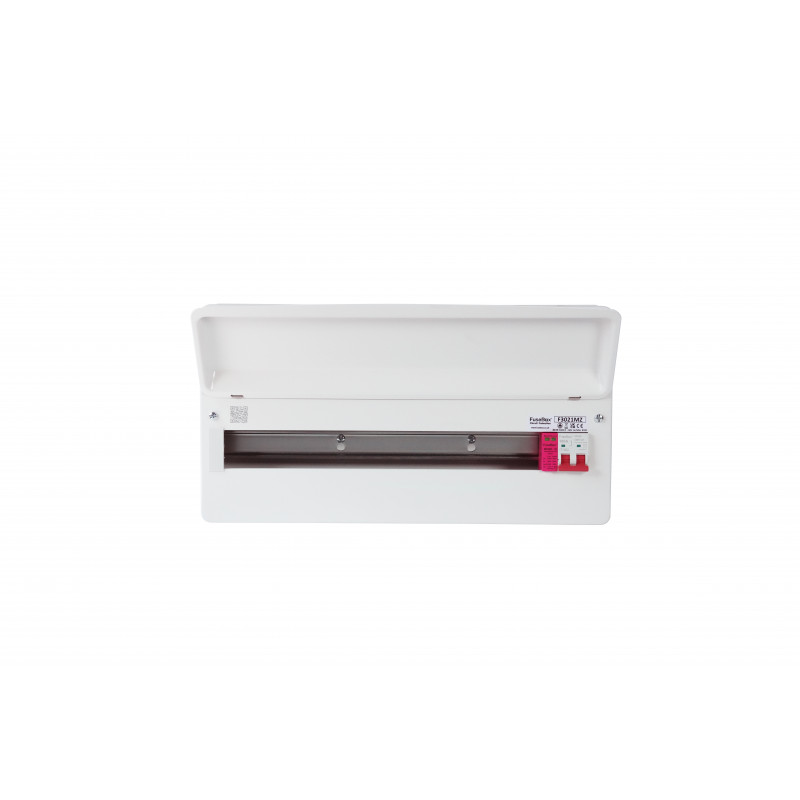

Fusebox F3021MZ 21 Way 100A Main Switch Consumer Unit With SPD
Model: F3021MZ
-
£86.84 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£72.37 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: Out of stock
The FuseBox F3021MZ consumer unit features 21 usable ways and comes with 100A Main Switch, A Type 2 Surge Protection device
As with all of the fusebox Surge Protected consumer units, the F3021MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below).
Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.
This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip.
- Reinforced grommet strip for enhanced cable protection
- 21 Way SPD main switch consumer unit
- Single module Type 2 Surge Protection Device (SPD)
- 100A main switch incomer
- 1mm electro-galvanised steel construction
- RAL 9001 powder-coated finish
- Earth and neutral terminal bars at top
- Removable, raised DIN rail
- Round knock-outs on all faces
- Extra height for RCBOs
- Tail clamp (ACCF) supplied
- Circuit identification labels included
- Captive screws on front cover
- IP20XC rated
- Complies with BS EN61439-3 and 18th Edition
Dimensions - Height 480mm x Width 255mm x Depth 113mm
Updated model replacing F2020MX
