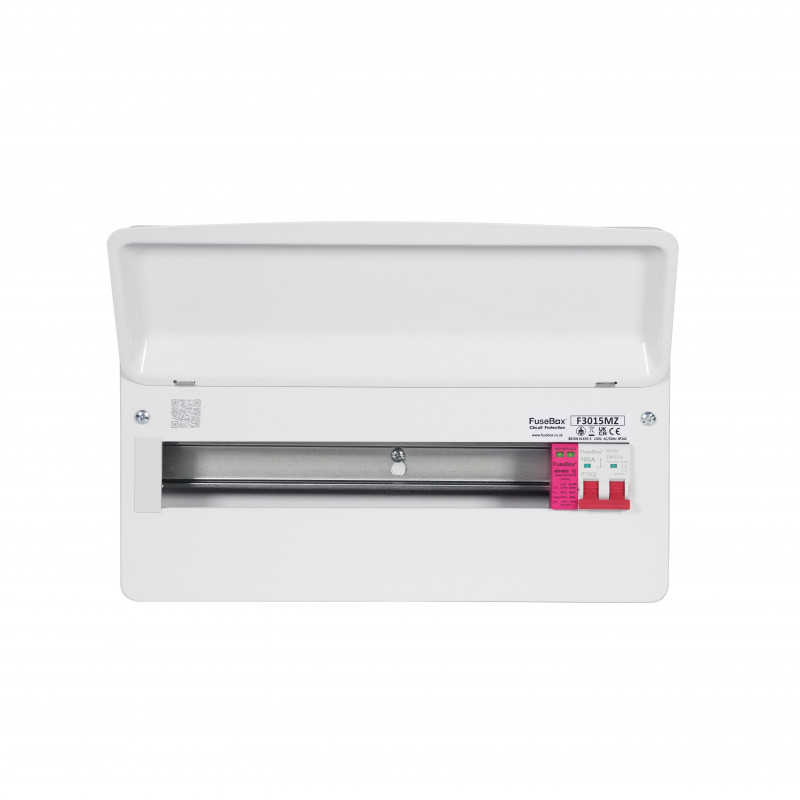

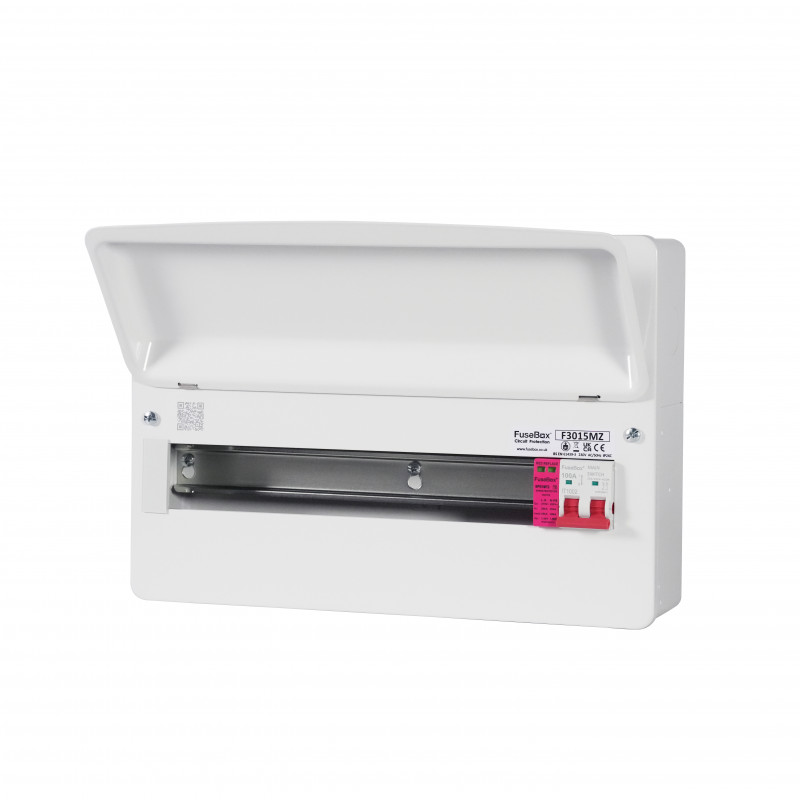

The FuseBox F3015MZ consumer unit features 15 usable ways and comes with 100A Main Switch, A Type 2 Surge Protection device

As with all of the fusebox Surge Protected consumer units, the F3015MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below).

Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip.

• Reinforced grommet strip for enhanced cable protection
• 15 Way SPD main switch consumer unit
• Single module Type 2 Surge Protection Device (SPD)
• 100A main switch incomer
• 1mm electro-galvanised steel construction
• RAL 9001 powder-coated finish
• Earth and neutral terminal bars at top
• Removable, raised DIN rail
• Round knock-outs on all faces
• Extra height for RCBOs
• Tail clamp (ACCF) supplied
• Maximum terminal bar capacity: 16mm²
• Circuit identification labels included
• Captive screws on front cover
• IP20XC rated

Dimensions - Height 372mm x Width 255mm x Depth 113mm

Updated model replacing F2014MX
