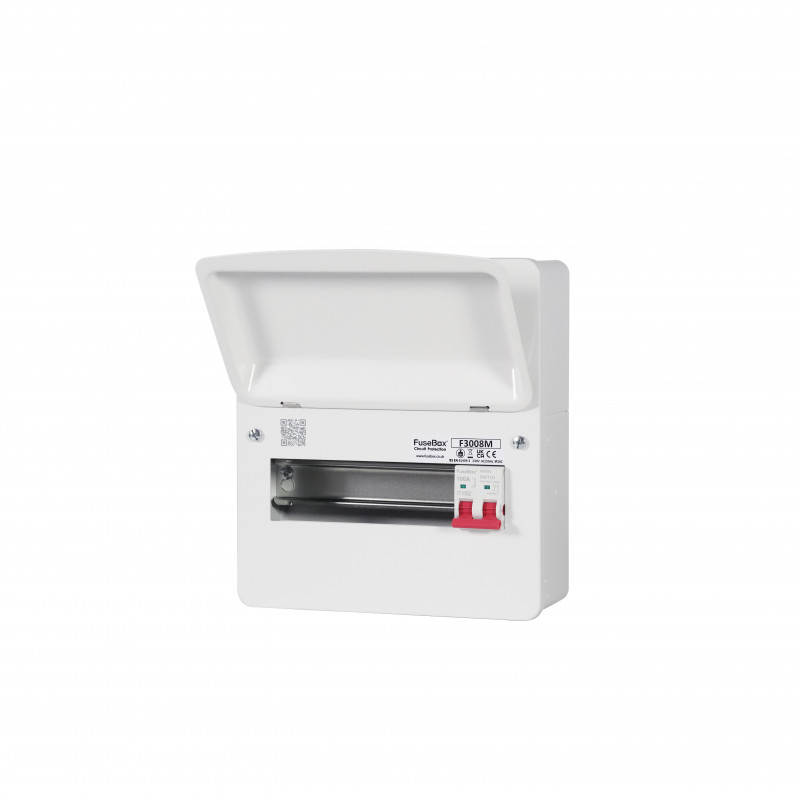

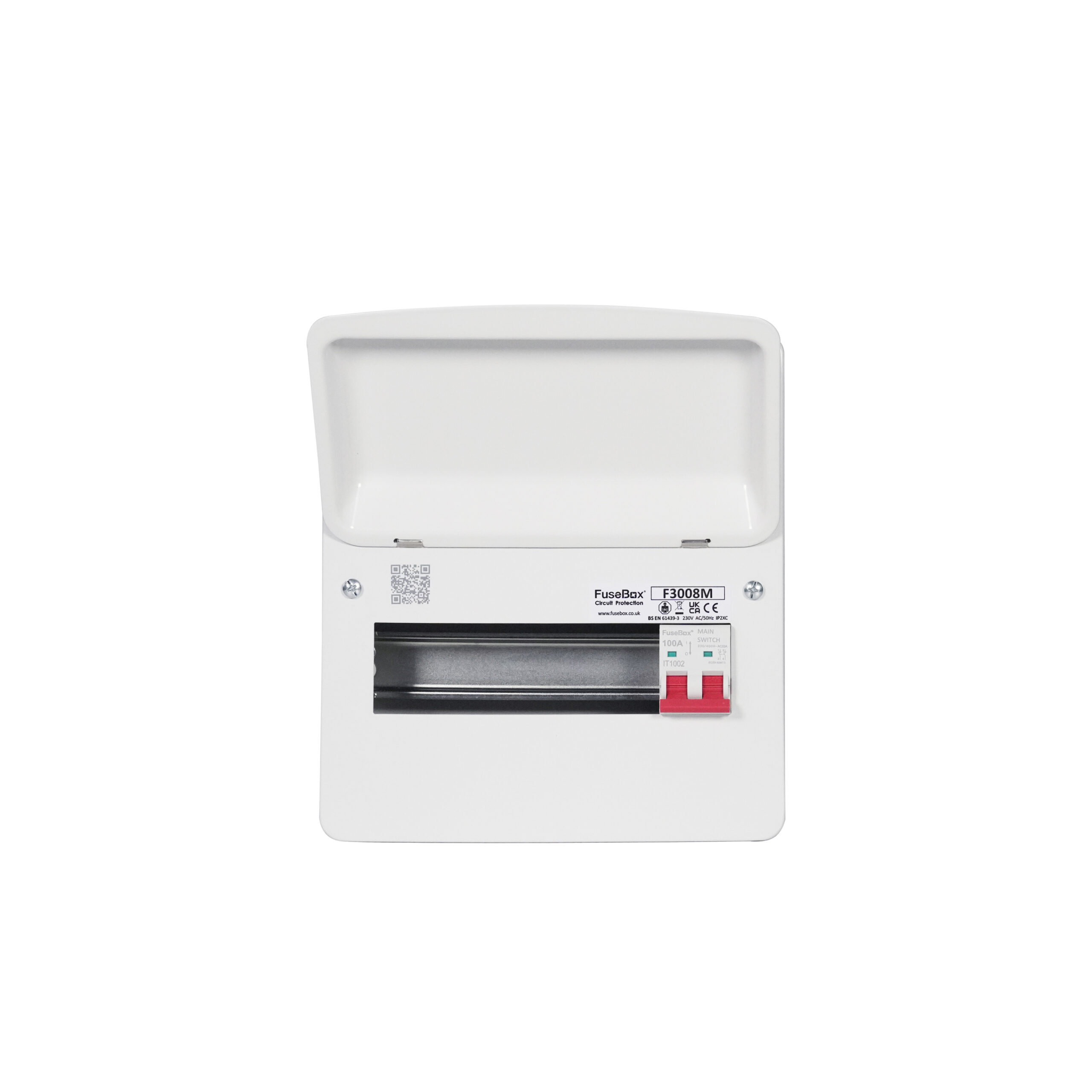

The F3008M 8 way Fusebox Consumer Unit is an AMD3 compliant
robust metal fuse box which is finished in a smooth white with conduit
knockouts on all planes and large knockouts to the rear. A removeable key slot
din rail together with earth and neutral terminal bars positioned at the top
ensure a quick and easy installation. Blanks and circuit identification labels
are supplied with every Fusebox board.

The fusebox F3008M main switch consumer
unit features 8 usable ways and comes with 100A Main Switch Incomer and a 32mm
tails clamp. You also have space to fit a surge protection device too.

As with all of the FuseBox boards, the F3008M has more than
enough space  for installation of both the mini and standard height RCBO

Additional features include captive screws on the front
cover, round knockouts on all four sides along with 2 large rectangular
knockouts on the rear.

This consumer unit is supplied with an installation
pack which includes a busbar, an icon label pack, and a grommet strip.

• • Reinforced
    grommet strip for cable protection

• • 8
    Way main switch consumer unit

• • Extra
    way compared to (F2007M)

• • 100A
    main switch incomer

• • EN
    61439-3 compliant

• • Earth
    and neutral terminal bars at top

• • Removable,
    raised DIN rail

• • Round
    knock-outs on all sides

• • Extra
    height for RCBOs

• • Circuit
    identification labels included

• • Captive
    screws on front cover

• • Compatible
    with 100A tail clamps

• • Compact
    size: 234mm x 255mm x 113mm

Dimensions – H 263mm x W 234mm x D 116mm

Updated Model Replacing F2007M
