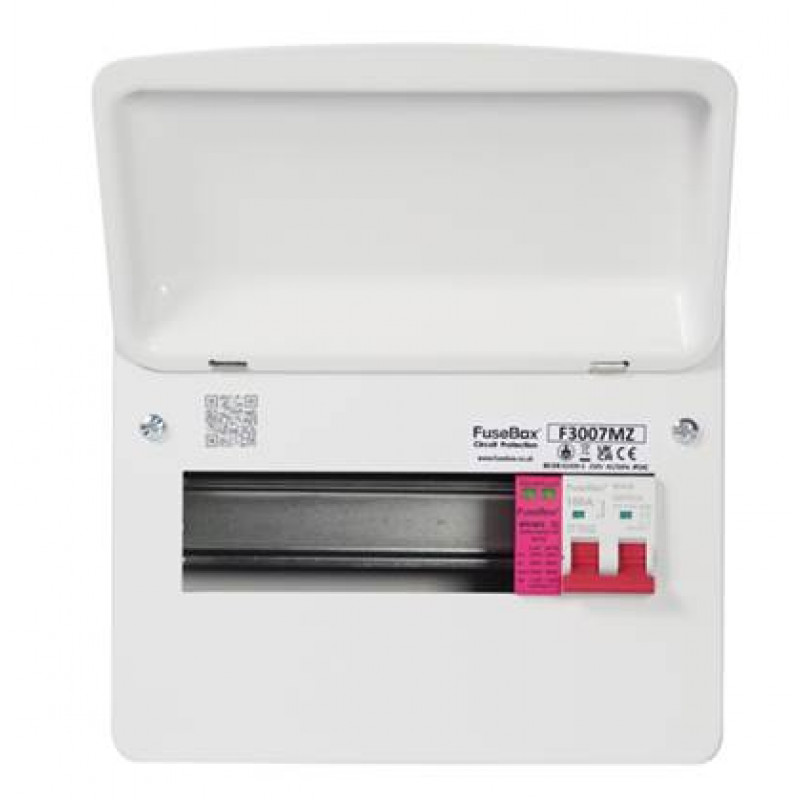

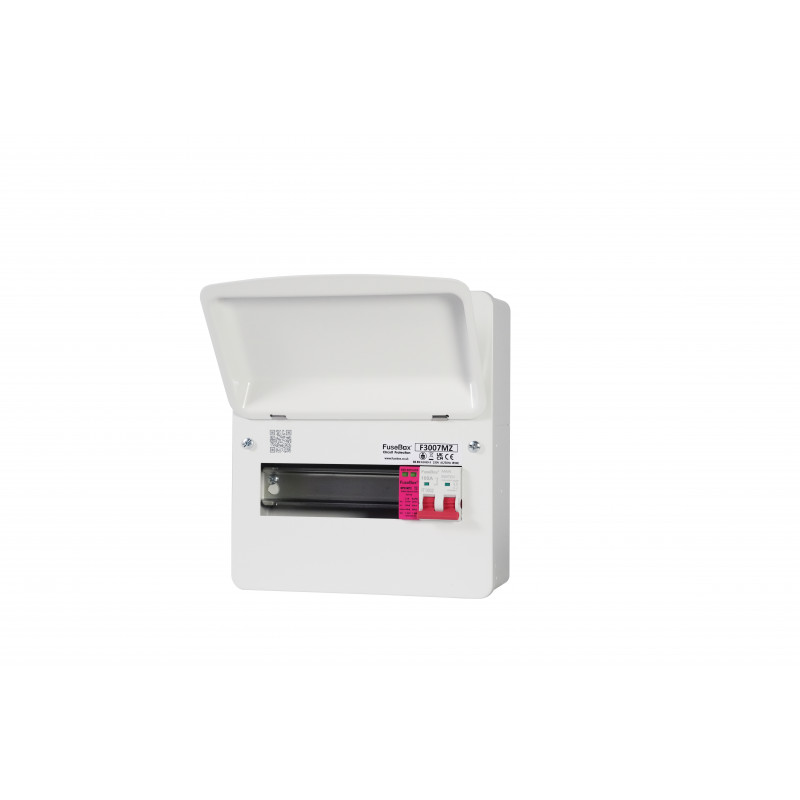

The FuseBox F3007MZ consumer unit features 7 usable ways and comes with 100A Main Switch, A Type 2 Surge Protection device

As with all of the fusebox Surge Protected consumer units, the F3007MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below).

Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear.

This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip.

• Reinforced grommet strip for enhanced cable protection
• 7 Way SPD main switch consumer unit
• Additional usable way
• Single module Type 2 Surge Protection Device (SPD)
• 100A main switch incomer
• Earth and neutral terminal bars at top
• Removable, raised DIN rail
• Round knock-outs on all faces
• Extra height for RCBOs
• Circuit identification labels included
• 18th Edition and Amendment 3 compliant
• Terminal bar tightening torque: 2.0 Nm

Dimensions – Height 234mm x Width 259mm x Depth 113mm

Updated model replacing F2006MX
