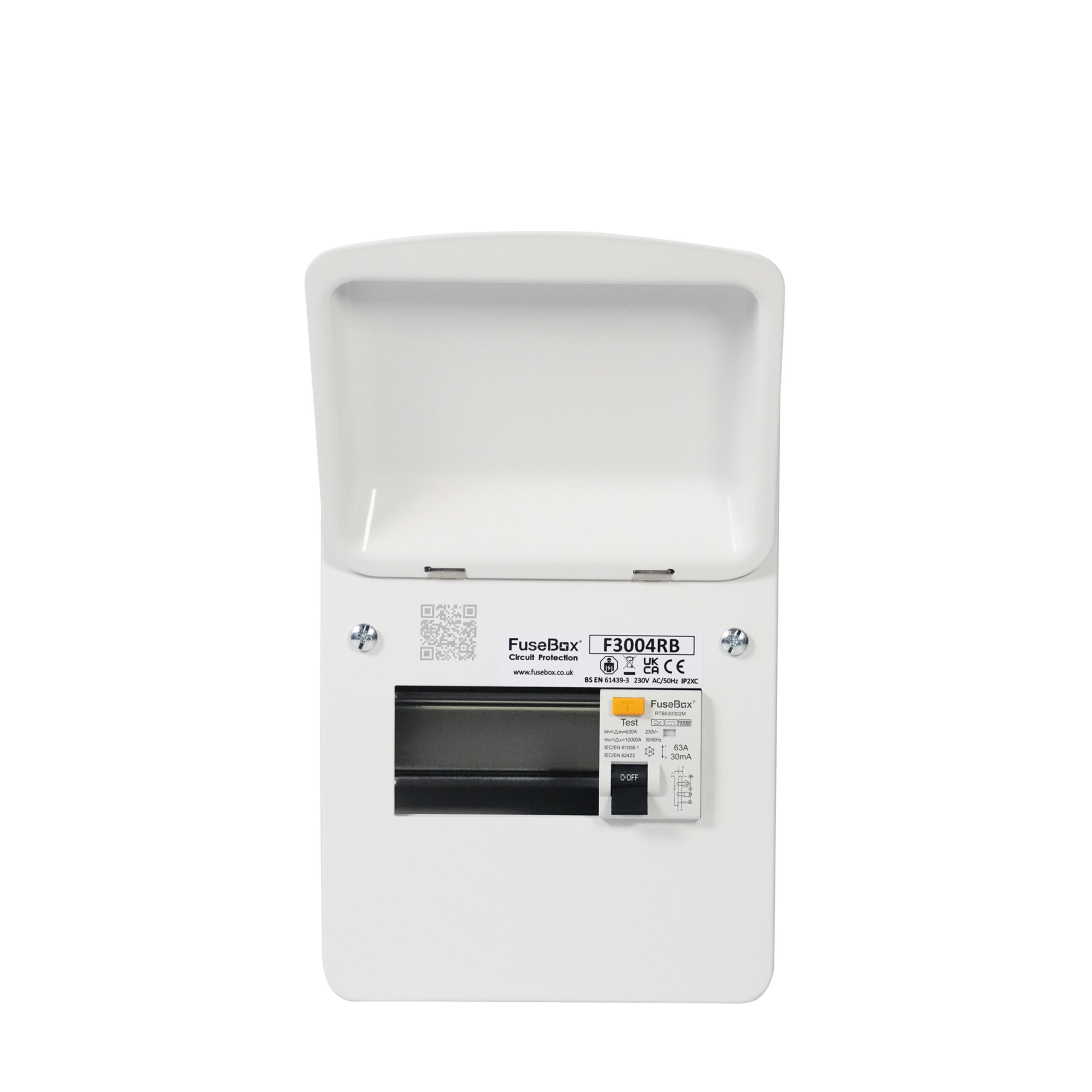

The new Fusebox F3004RB 4 usable way Consumer Unit is a
fantastic cost effective and quality solution for any suitable application

• 63A Type B RCD Protection
• 18th edition
• Earth and neutral terminal bars on top of consumer unit
• Removable and raised DIN rail
• Round knock-outs on all faces (20mm & 32mm top and
  bottom, 40m on sides)
• Extra height for RCBOs (standard and mini RCBOs available on
  our store)
• 1mm electro-galvanised steel (zinc)
• Busbar shroud
• RAL 9001 powder-coated arctic white finish to give a stylish
  look
• Tail clamp compatible (To be ordered separately ACCF)
• Circuit identification labels (Full label pack)
• Upgraded Grommet Strip included
• Captive screws on front cover as standard for ease of
  installation
• IP20XC Rated
• BS EN61439-3 compliant

Dimensions – Height 255mm x Width 162mm x Depth
116mm

Updated Model Replacing F2004RB
