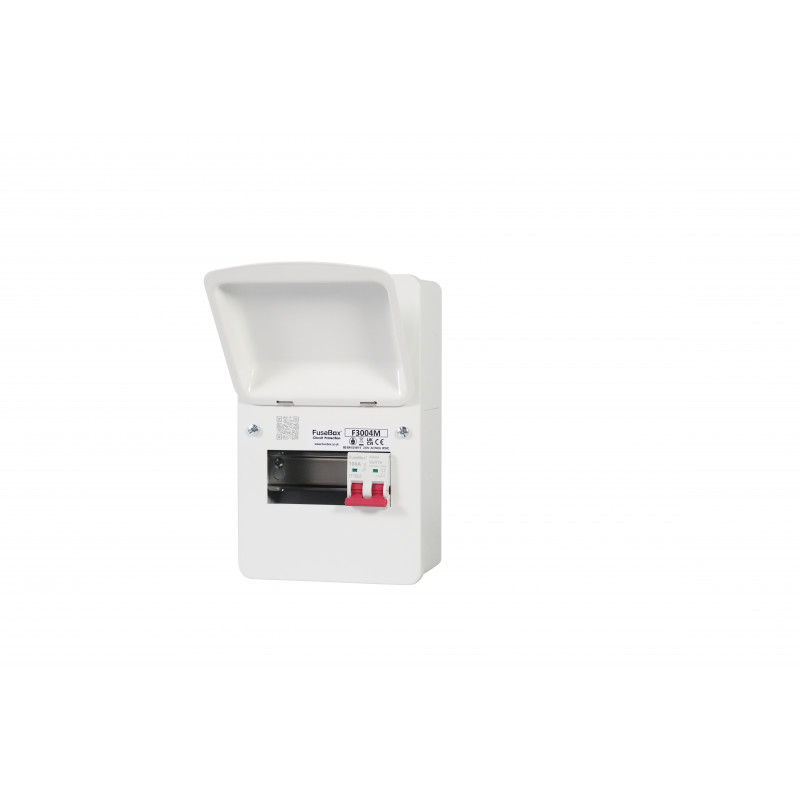

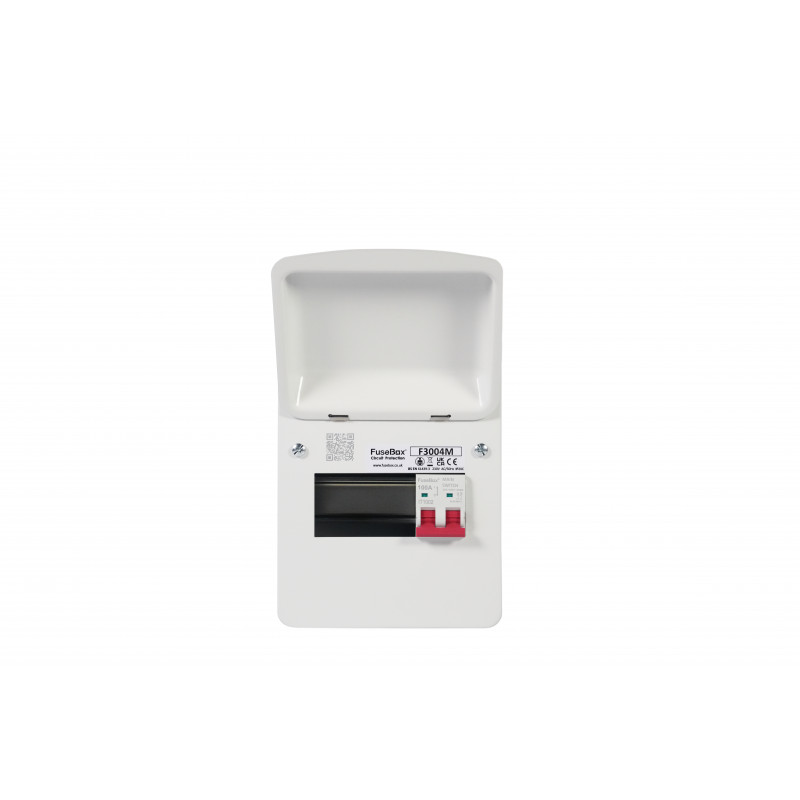

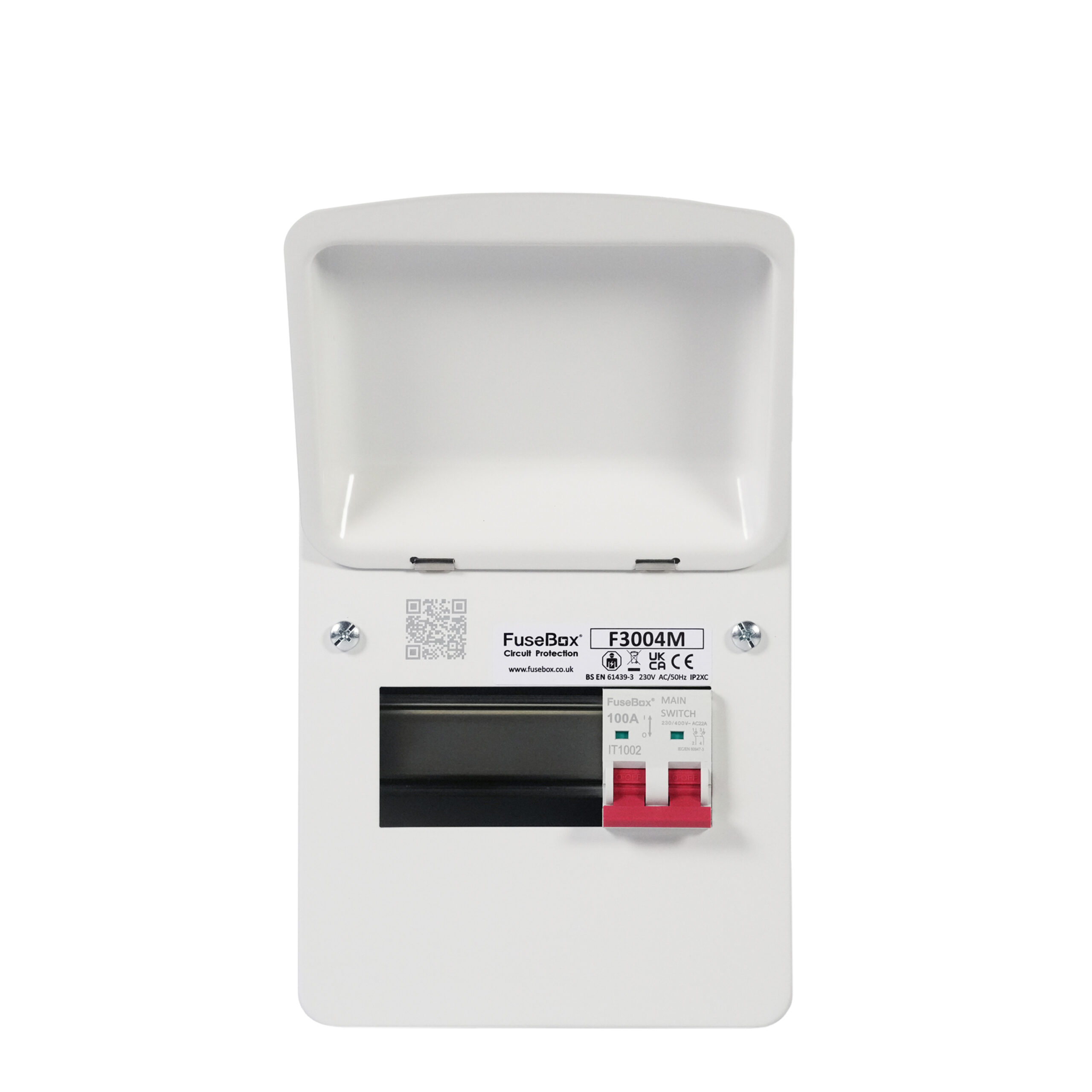

The FuseBox F3004M is a compact 4-way consumer unit featuring a 100A double pole main switch. Its 6-module configuration allows for flexible circuit arrangements, and it complies with BS EN 61439-3 standards.

Constructed from durable metal with a smooth white powder-coated finish (RAL 9001), this unit includes a reinforced grommet strip for enhanced cable protection. Ideal for residential applications requiring a reliable and safe power distribution solution.

Key Features

• 4 usable ways including 2 blank modules for future expansion
• IP2X ingress protection rating
• Earth and neutral terminal bars included
• Supplied with 100A main switch and blank modules
• Knockouts: 20mm and 32mm top and bottom
• Compatible with RCBOs, RCDs, MCBs, and accessories
• Complies with BS EN 61439-3 and 18th Edition AMD3 regulations
• DIN rail included for quick device installation
• Padlock able front cover for added security (padlock not included)
• Steel construction with RAL9003 white epoxy finish
• Ideal as a garage or outbuilding consumer unit
• Suitable for residential, commercial, or light industrial use
• Colour / Finish White

Dimensions (H x W x D) 263mm (H) x 162mm (W) x 116mm (D).
