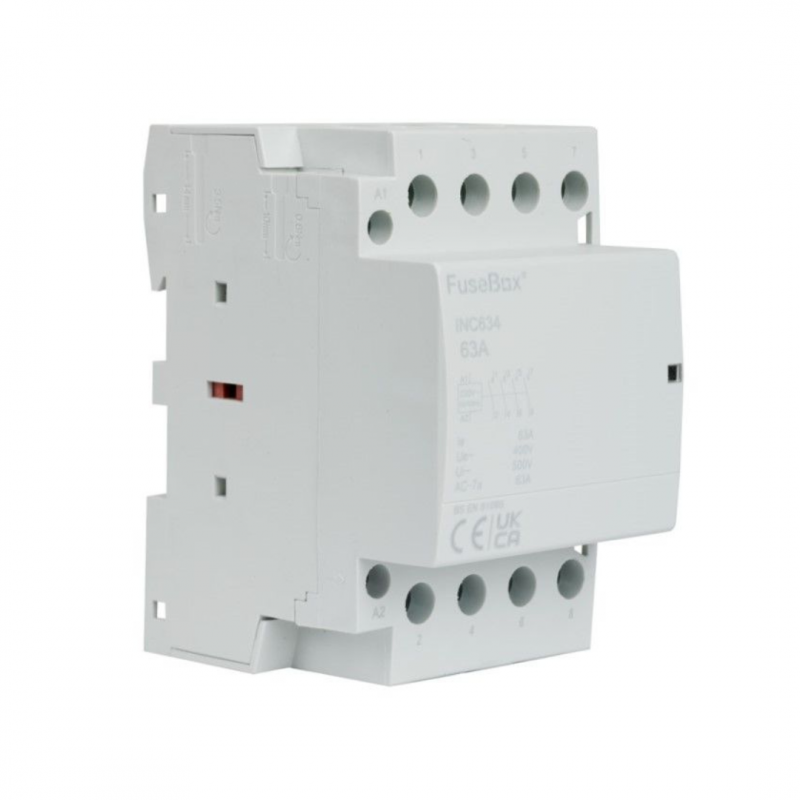

FuseBox installation modular contactors, that are suitable for use in modular enclosures and consumer units. Providing an economical alternative to other brands on the market, FuseBox contactors are available in 2 or 4 pole versions and in 20A, 40A and 63A current ratings.

Modular contactor are physically different to ordinary contactors, they are the same shape as a circuit breaking allowing them to be used in consumer units to control heating devices and more.

Specification

• Contact configuration: N/O Contacts
• Available in current rating and pole types:
  – 20 Amp = 2 Pole
  – 25 Amp = 4 Pole
  – 40 Amp = 2 Pole
  – 63 Amp = 4 Pole
• Terminal capacity: 4mm²
• IP rating: IP20
• Material: PA6 Nylon
• Torque setting: CC (A1,A2) 0.8Nm, PC (1,2,3,4) 0.8Nm
• Standard: BS EN 61095
• Complete with Heat Sheilds
• DIN Rail Mounting
• MCB Form Factor
• Voltage: 230V / 50Hz
• Manufacturer: FuseBox
