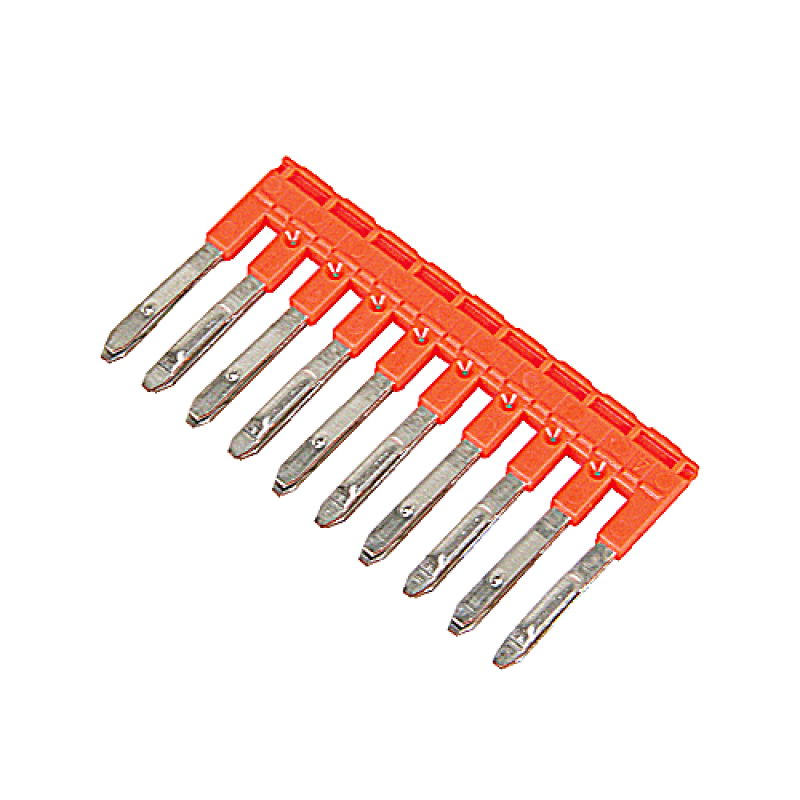

• ABB JUMPER BAR 10 POLE 5MM PITCH ORANGE (x100)

ABB JUMPER BAR 10 POLE 5MM PITCH ORANGE (x100)

Model: JB5-10

  • £148.14 inc VAT

  • £123.45 ex VAT

Facilitate & secure your jumper bar assembly process: - Screwless mounting, - Pre-cut poles for alternated jumpering between terminal blocks, - Insulated, - Positive locking, - Perfectly adapted to low level electrical contact (20mA, 50mV).

Technical

  • Spacing:
    5.2 mm
  • Function:
    Jumper Bars
  • Rated Current (In):
    Main Circuit 32 A
  • Rated Short-time Withstand Current (Icw):
    for 1 s 480 A
  • Rated Voltage (Ur):
    1000 V
  • Rated Impulse Withstand Voltage (Uimp):
    8000 V
  • Dielectric Test Voltage:
    2200 V
  • Pollution Degree:
    3
  • Power Loss:
    1 W
  • Degree of Protection:
    acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
  • Insulation Material:
    Polyamide
  • Suitable For:
    ZDK2.5-22
    ZDP2.5-11
    ZDP2.5-22
    ZDP2.5-D1
    ZDP2.5-D2
    ZDS4-22
    ZK2.5
    ZK2.5-3P
    ZK2.5-4P
    ZK2.5-CH-4P
    ZK2.5-D1
    ZK2.5-D1-PE
    ZK2.5-D2
    ZK2.5-D2-PE
    ZK2.5-D-CH
    ZK2.5-PE
    ZK2.5-PE-3P
    ZK2.5-PE-4P
    ZK2.5-S
    ZK2.5-S-4P
    ZK2.5-SP
    ZK2.5-SP-4P
    ZP2.5
    ZP2.5-3P
    ZP2.5-4P
    ZP2.5-D1
    ZP
