ABB is a leader in power and automation technologies, manufacturing low-voltage circuit breakers, switches and control products to protect people, installations and electronic equipment.
The System ProM Compact S200 range of miniature circuit breakers have dual tripping mechanisms for overload and short circuit protection. They are suitable for residential, commercial and industrial applications.

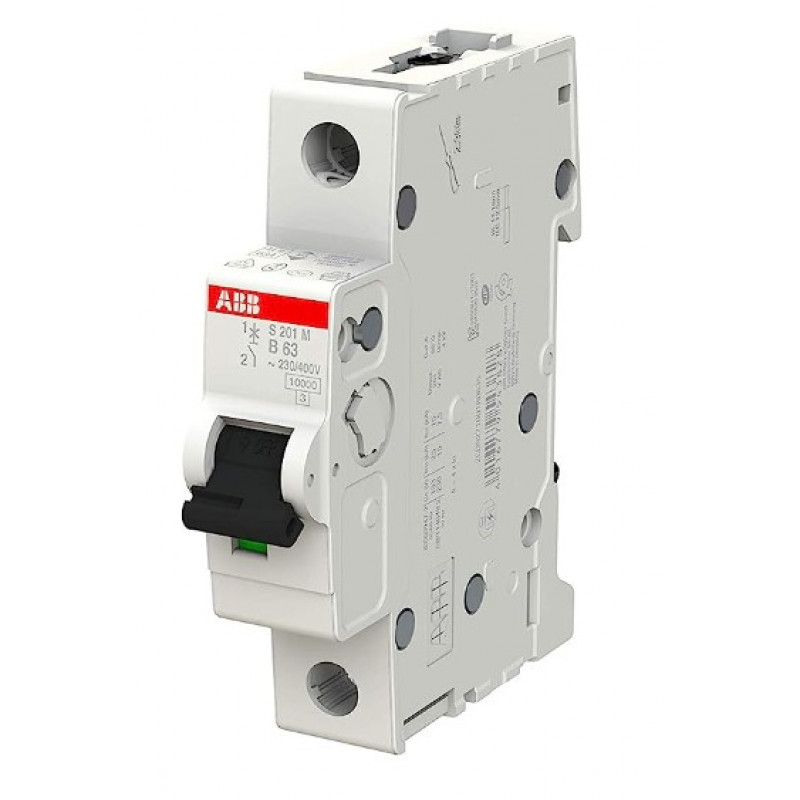

The ABB 2CDS271001R0635 S201MB63 is a 63A 10kA single pole Type B MCB.
| Circuit Breakers Description Product |
Circuit Breaker |
| Circuit Breakers Description Type (Cable Baskets) |
MCB |
| Circuit Breakers Features Pole Configuration |
SP |
| Circuit Breakers Features Mounting |
DIN Rail |
| Circuit Breakers Features Ingress Protection |
IP20 |
| Circuit Breakers Features Trip Type |
Type B |
| Circuit Breakers Features Short Circuit Rating |
10 kA |
| Circuit Breakers Dimensions Height |
88 mm |
| Circuit Breakers Dimensions Width |
17.5 mm |
| Circuit Breakers Dimensions Depth |
69 mm |
| Circuit Breakers Technical Data Current Rating |
63 A |
| Circuit Breakers Technical Data Voltage |
230|400 V |
| Circuit Breakers General CE Approved |
Y |
| Circuit Breakers General Standards |
IEC/EN 60898-1 IEC/EN 60947-2 |
| Circuit Breakers General Unit Weight |
0.12 kg |
| Dimension |
63A 10kA |
| Circuit Breakers Description Type |
MCB |
| Circuit Breakers Dimensions Cable Capacity |
0.75 to 25 (Flexible) 0.75 to 35 (Rigid) mm2 |
| Circuit Breakers Features Ingress Protection (EF005474) |
IP20 |
| Circuit Breakers Dimensions Height (EF000040) |
88 mm |
| Circuit Breakers Dimensions Width (EF000008) |
17.5 mm |
| Circuit Breakers Dimensions Depth (EF000049) |
69 mm |
| Circuit Breakers Technical Data Current Rating (EF000227) |
63 A |
| Circuit Breakers Features Mounting (EF000003) |
DIN Rail |
| Circuit Breakers Dimensions Height (EF008809) |
88 mm |
| Circuit Breakers Dimensions Width (EF008808) |
17.5 mm |
| Circuit Breakers Dimensions Depth (EF008810) |
69 mm |
| Manufacturer |
ABB Limited |
| Brand |
System ProM Compact |
