ABB 2CDS271001R0404 S201MC40 MCB SP 10KA
Model: S201MC40
ABB 2CDS271001R0404 S201MC40 MCB SP 10KA
Model: S201MC40
-
£13.79 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£11.49 Ex VAT ( FREE UK Delivery On Orders Over £150* )
ABB is a leader in power and automation technologies, manufacturing low-voltage circuit breakers, switches and control products to protect people, installations and electronic equipment.
The System ProM Compact S200 range of miniature circuit breakers have dual tripping mechanisms for overload and short circuit protection. They are suitable for residential, commercial and industrial applications.

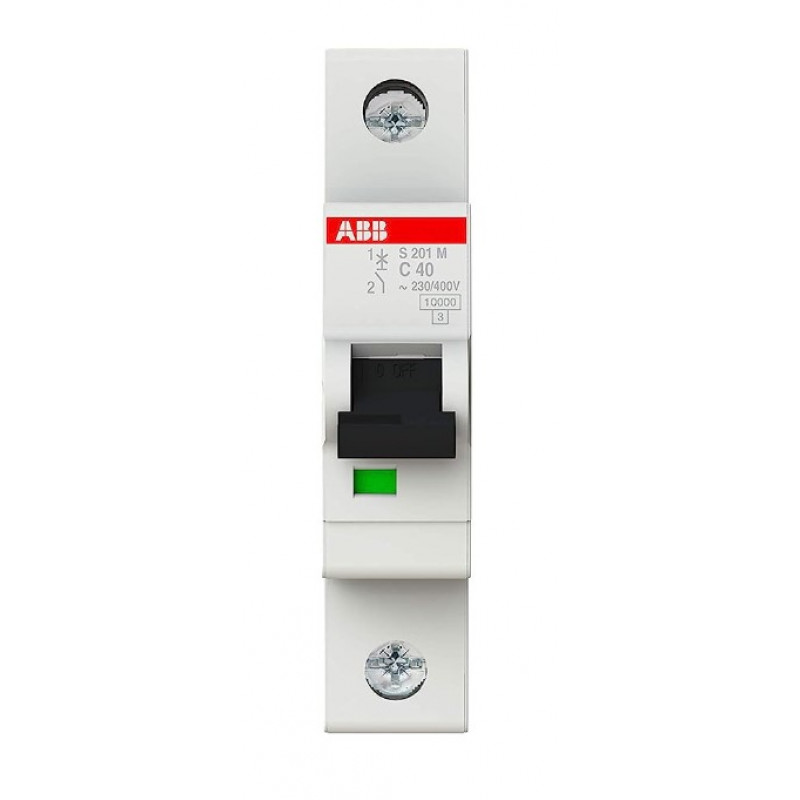

The ABB 2CDS271001R0404 S201M-C40 is a 40A 10kA single pole Type C MCB.
Technical
|
Actuator Type |
Insulation group II, black, sealable |
|
Contact Position Indication |
Red ON / Green OFF |
|
Degree Of Protection |
IP20 |
|
Dielectric Test Voltage |
50 / 60 Hz, 1 min: 2 kV |
|
Housing Material |
Insulation Group II, RAL 7035 |
|
Mounting On DIN Rail |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC
60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
|
Mounting Position |
Any |
|
Number Of Poles |
1 |
|
Pollution
Degree |
3 |
|
Power Loss |
4.8 Wat Rated Operating Conditions per Pole 4.8 W |
|
Rated Current In |
40 A |
|
Rated Frequency F |
50 Hz60 Hz |
|
Rated Impulse Withstand Voltage Uimp |
4 kV(6.2 kV @ sea level)(5.0 kV @ 2000 m) |
|
Rated Insulation Voltage Ui |
acc. to IEC/EN 60664-1 440 V |
|
Rated Operational Voltage |
acc. to IEC 60898-1 230 / 400 V ACacc. to IEC 60947-2 230
V AC |
|
Rated Service ShortCircuit Breaking Capacity Ics |
(133 V AC) 18.8 kA |
|
Rated Ultimate ShortCircuit Breaking Capacity Icu |
(133 V AC) 25 kA(230 V AC) 15 kA |
|
Recommended Screw Driver |
Pozidriv 2 |
|
Terminal Type |
Screw Terminals |
|
Tightening Torque |
2.8 N·m |
|
Technical UL/CSA |
|
|
Maximum Operating Voltage ULCSA |
60 V DC480Y/277 V AC |
|
Tightening Torque ULCSA |
18 in·lb |
|
Connecting Capacity ULCSA |
Busbar 14-8 AWGConductor 14-4 AWG |
