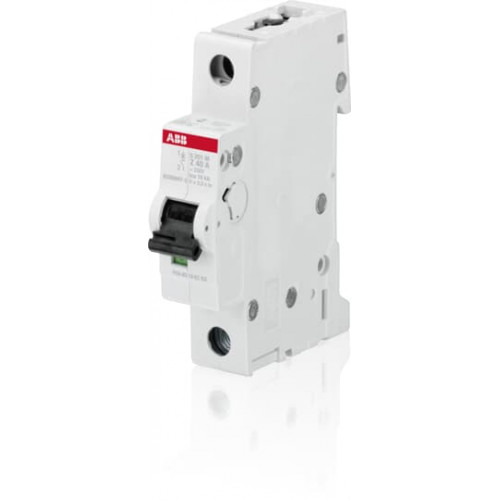

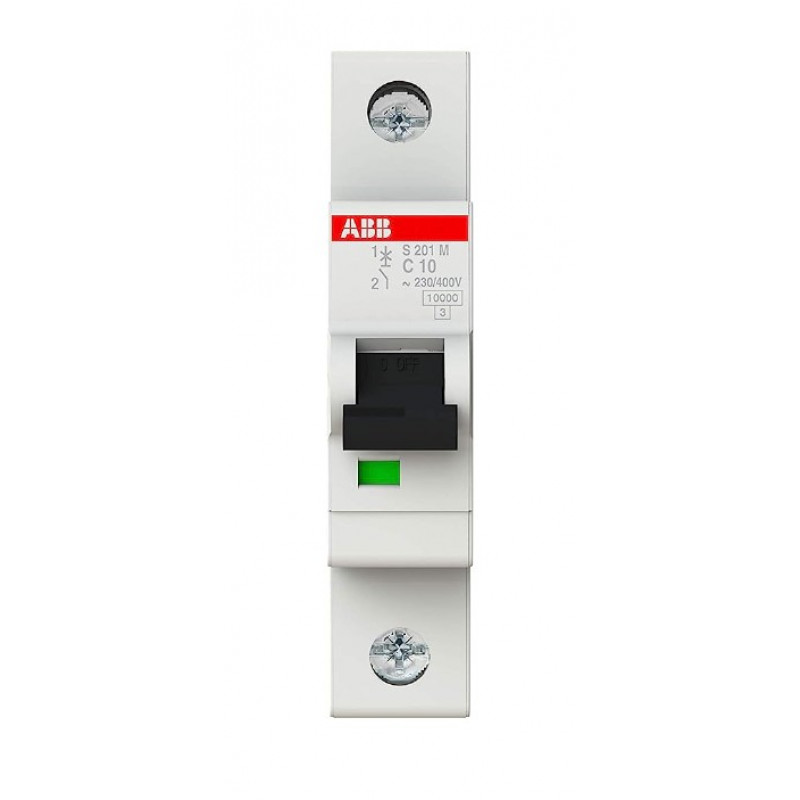

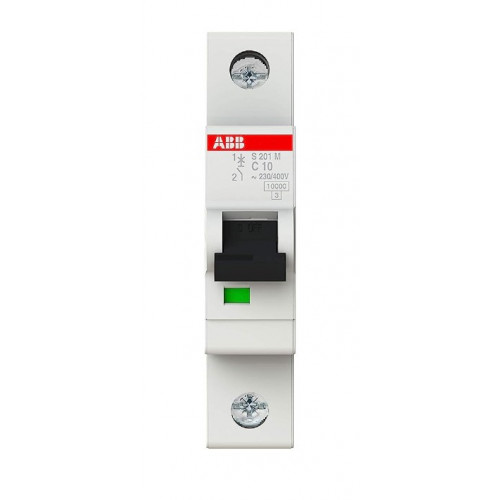

ABB 2CDS271001R0104 MCB S201MC10 10A10KA
Model: S201MC10
ABB 2CDS271001R0104 MCB S201MC10 10A10KA
Model: S201MC10
-
£13.79 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£11.49 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Technical
- MCB, 1 POLE, 10A, 10KA, C
CURVE
- Voltage Rating V
AC: 230V
- Current Rating: 10A
- No. of Poles: 1
- Series: System pro M
compact
- Approval Bodies: CSA /
EN / IEC / IEC / UL / VDE
- Breaking Capacity Current
AC: 10kA
- External Depth: 69mm
- External Length /
Height: 85mm
- External Width: 17.5mm
- Mounting Type: DIN Rail
- No. of Electrical Operations: 20000
- No. of Mechanical
Operations: 20000
- Operating Temperature
Max: 55°C
- Operating Temperature
Min: -25°C
- Tripping
Characteristic: C
