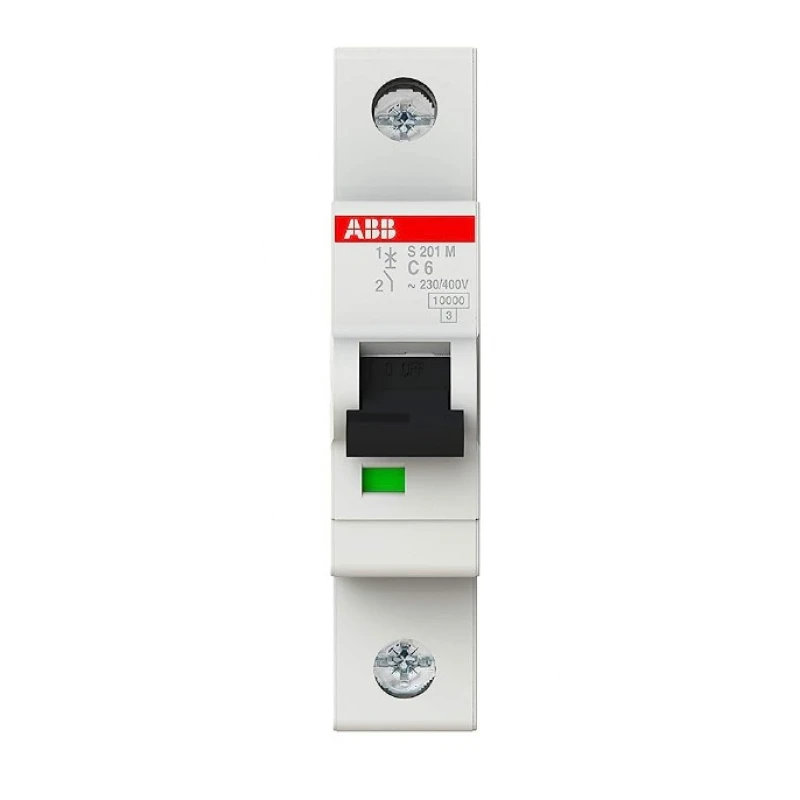

ABB S201MC6 SP MCB C6A 10kA 2CDS271001R0064
Model: S201MC6
ABB S201MC6 SP MCB C6A 10kA 2CDS271001R0064
Model: S201MC6
-
£13.79 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£11.49 Ex VAT ( FREE UK Delivery On Orders Over £150* )
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space
Technical
Miniature circuit breaker
(MCB) |
|
Rated short-circuit
breaking capacity Icu IEC 60947-2 a 230 V |
15
kA |
Additional equipment
possible |
Yes |
Suitable for
flush-mounted installation |
No |
Concurrently switching
N-neutral |
No |
Frequency |
50
- 60 Hz |
Rated short-circuit
breaking capacity Icn EN 60898 at 230 V |
10
kA |
Width in number of
modular spacings |
1 |
Current limiting class |
3 |
Rated voltage |
230
V |
Number of protected poles |
1 |
Release characteristic |
C |
Rated short-circuit
breaking capacity Icu IEC 60947-2 at 400 V |
15
kA |
Number of poles (total) |
1 |
Over voltage category |
3 |
Rated current |
6
A |
Built-in depth |
71
mm |
Pollution degree |
2 |
Degree of protection (IP) |
IP20 |
Voltage type |
AC/DC |
