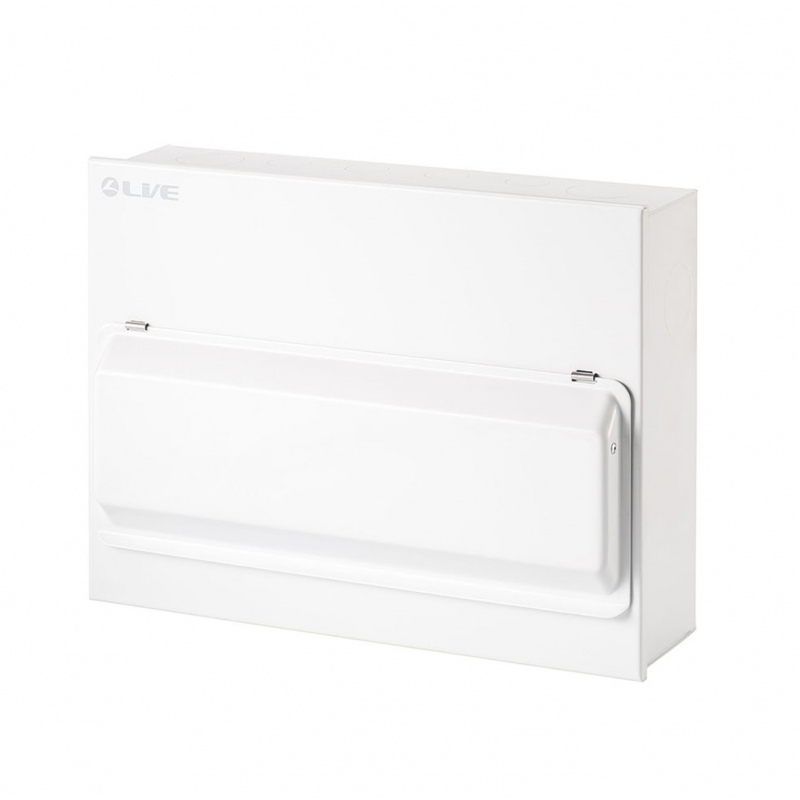

Live Electrical 14 Way Split Load Consumer Unit c/w 100 Isolator/2x63A 30mA RCD + 8 MCBs (3x6A, 1X16A, 3X32A, 1X40A)
Model: LHMC1480TR-A
Live Electrical 14 Way Split Load Consumer Unit c/w 100 Isolator/2x63A 30mA RCD + 8 MCBs (3x6A, 1X16A, 3X32A, 1X40A)
Model: LHMC1480TR-A
-
£81.59 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£67.99 Ex VAT ( FREE UK Delivery On Orders Over £150* )
Product: In Stock

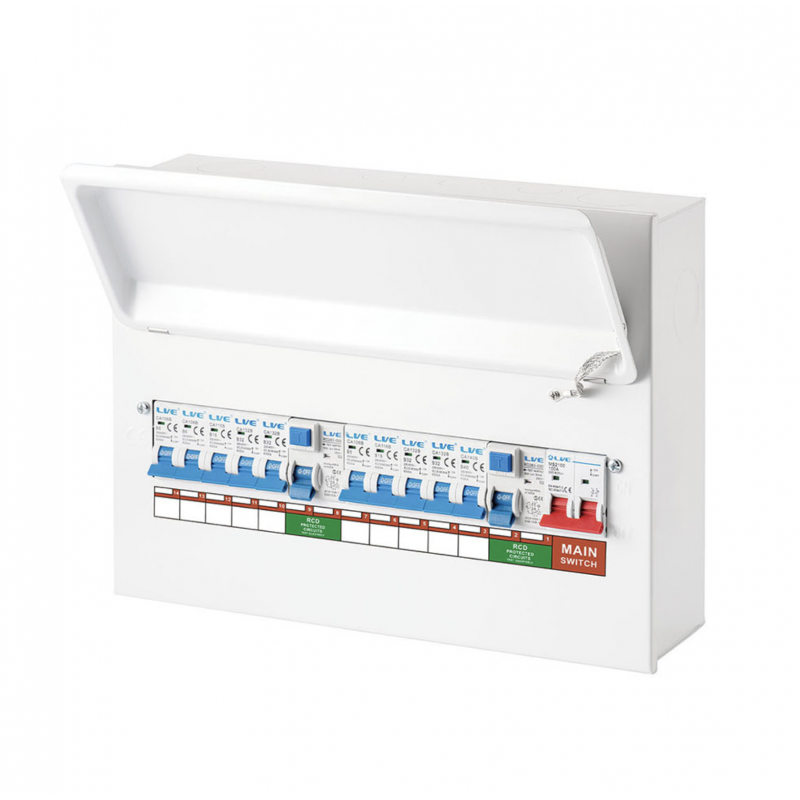

Consumer units designed to meet the needs of the 18th Edition wiring regulations. They come fitted with a 100A Mains Switch and 2 x 63A or 2 x 80A 30mA DP RCD’s. Flexible connection allows for various configurations of protected ways. To minimise the risk of total failure the unit should be configured so that adjacent areas of power or lighting are not connected to the same RCD.
- Modern style finished in epoxy powder paint to RAL7035.
- Large and accessible wiring space.
- Raised din rail improves cable routing.
- Allows fitting of RCBO’s or MCB’s, all circuits can be independently protected by the use of RCBO’s.
- Dimensions: 305W x 252H x 110D
- Operating Voltage: 230/50Hz
- Maximum Load(A): as indicated on incoming device
- Material: manufactured from robust steel
- Protection Degree: IP40
- Standard: BSEN61008, BS EN60898, BS EN61439-3
