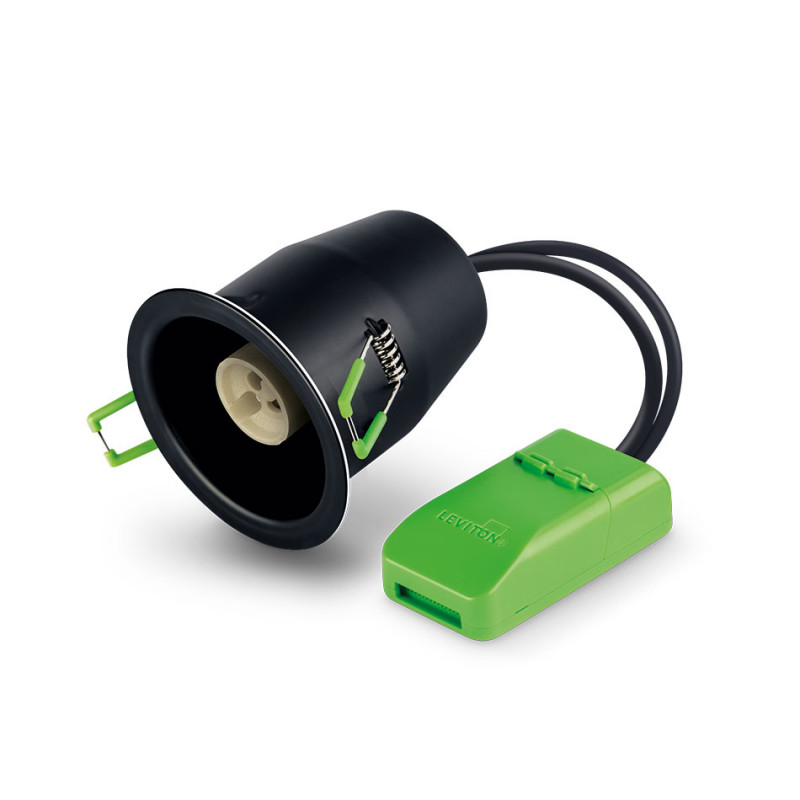

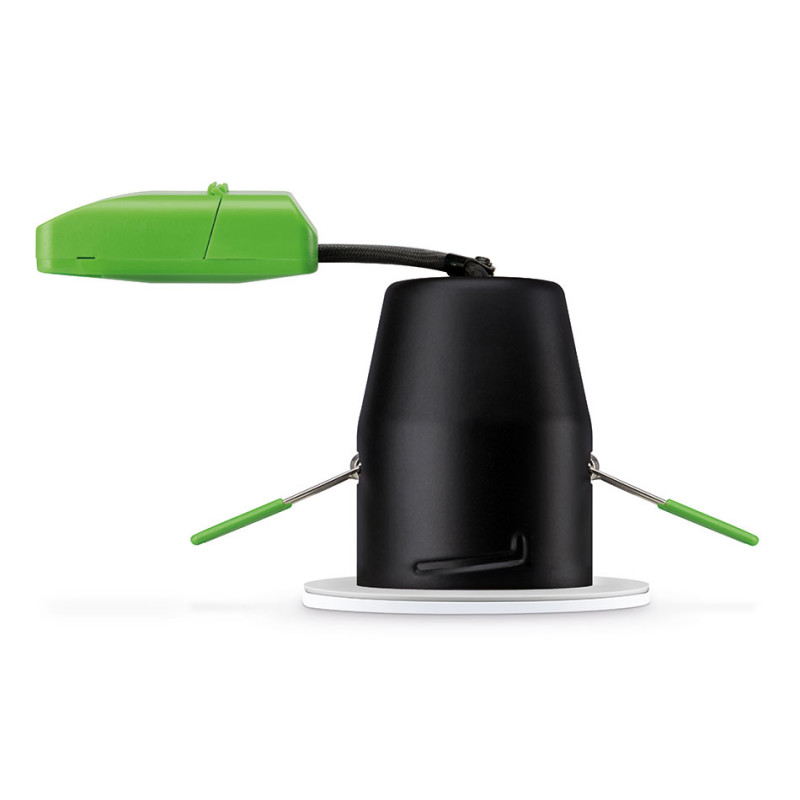

JCC JC010023/NB Fireguard Next Generation Mains Twist and Lock Tilt Downlight
Model: JC010023/NB
JCC JC010023/NB Fireguard Next Generation Mains Twist and Lock Tilt Downlight
Model: JC010023/NB
-
£4.50 Inc VAT ( FREE UK Delivery On Orders Over £150* )
£3.75 Ex VAT ( FREE UK Delivery On Orders Over £150* )
JCC Fireguard JC010023/NB Next Generation GU10 Fire Rated
Tilt Downlight. Providing a streamlined, simple installation for fast fitting
with a stylish, modern aesthetic to fit seamlessly throughout any home.
The can has been shortened, narrowed, and tapered. Allowing
for use in shallower voids, easier entry into the ceiling and improved spring
clip mobility, further streamlining the installation process. The quick connect
loop in/out press fit terminal block has been upgraded to provide 180° access,
allowing for stress free installation and simple termination whilst providing
strain relief for the wiring.
The 15° tilt angle allows for directional lighting and the ability
to target areas of a room which need some extra brightness, whilst also being
the perfect option for vaulted ceilings or for highlighting features and
artwork on walls.
The downlight is specially designed to be insulation
coverable, shaped to allow for air flow and provide ventilation for the LED,
lengthening its life span, making the downlight perfect for usage in insulated
ceilings. The Fireguard Downlights are 30, 60 and 90 minute fire rated, helping
to prevent the spread of fire throughout your home and provide peace of mind
for you and your family.
The Fireguard provides you with flexibility, allowing you
the choice of GU10 LED lamp on installation, giving you full customisation of
the wattage and colour, whilst the simple twist and lock bezel makes future
bezel or LED changes quick and easy.
The Fireguard bezel range allows for customisation of IP
rating, with IP20 and IP65 rated interchangeable bezels available, The IP20
Bezel is suitable for installation all throughout the home including bathrooms,
outside of Bathroom Zone 2. When fitted with the IP65 Bezel the downlights can
be used inside of Bathroom Zone 1 and is the perfect option for installation
throughout bathrooms, wet rooms or as a shower light.
We also stock Fireguard Next Generation Fixed
Downlights, customisable with IP20 and IP65 Bezels, ideal for lighting
throughout your household, or as a shower light.
Features of JCC
JC010023/NB:
- Bezel
not included, interchangeable aluminium bezel available in white, chrome
or brushed nickel, perfect for usage all throughout the home
- Designed
for GU10 LED lamps - lamp not included
- 15°
adjustable tilt
- Part
B fire rating compliant- 30, 60 and 90 minute fire rating
- Airtight
(Part C)
- Acoustic
rated (Part E)
- Tested
for use in solid, I-Joist and steel open web joist ceilings
- Thermally
tested for use with mineral wool insulation
- Ultra
fast press fit,
- Loop
in/out terminal
- Easy
twist and lock bezel replacement
- Minimum
void: 150mm
- Spring
clip fixing
- IP
Rating: IP20
- LED
compatible
- Wattage:
7W LED maximum
- Construction:
Die cast aluminium
- Class:
Class 1, earth cable required
- Compatible
with bulbs A+ to E
- Diameter:
100mm
- Depth:
115.45mm
- Weight:
0.264kg
- Standards:
BS EN 60598-2-1, 2-2, CE Mark, WEEE symbol
- Product
code: JC010023/NB
- JCC Warranty: 2 years
