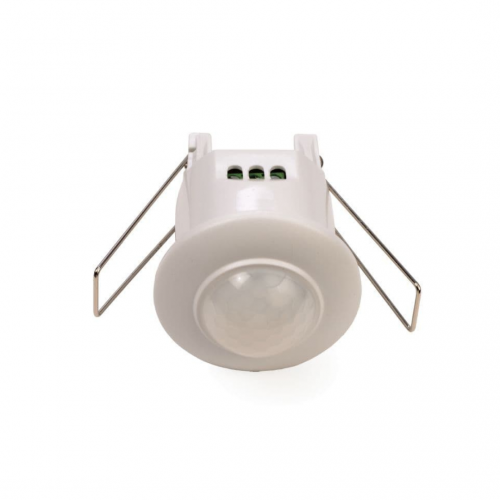

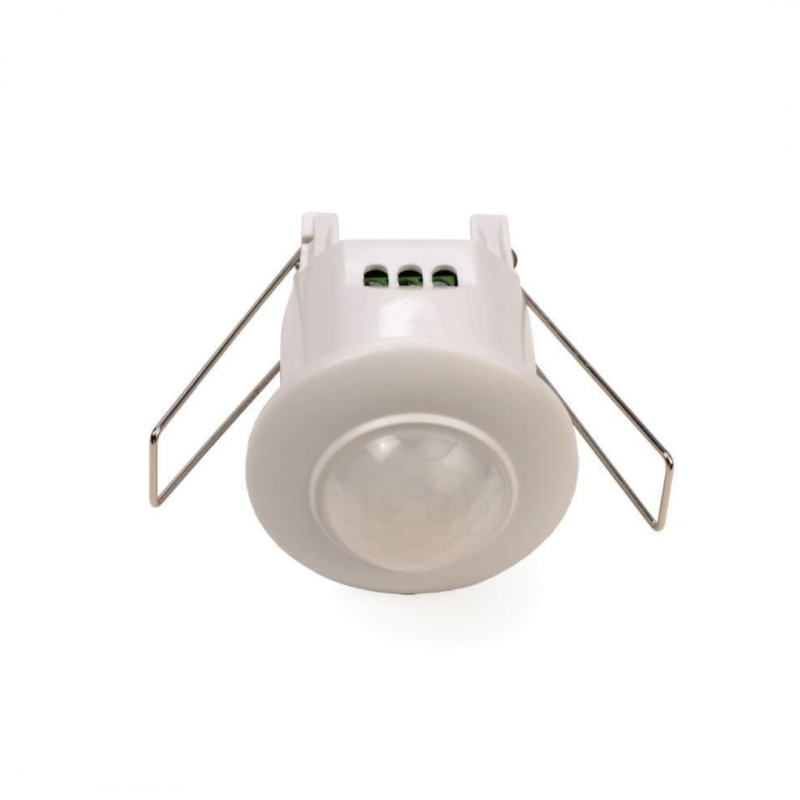

The Hispec HSODR/M is a recessed mini occupancy detector that is IP20 rated. This PIR sensor has a detection range of 360 degree and a detection distance of a maximum 6m. The time delay can be set to 10 sec - 15 mins and has an adjustable ambient light of between 3-2000lux. The PIR can be installed between a height of 2 - 4 metres.

• 360° detection
• Individual settings for time and lux
• Internal use
• Detection Distance:6m Max
• Detection Range:120° side view / 360° top view
• Ambient Light:3-2000 lux (adjustable)
• Time Delay:Min 10 sec / Max 15 mins
• Maximum Load:400x LED
• Cutout: 42mm
• IP Rating: IP20
• Voltage:220-240v
• Installation Height: 2-4 metres
