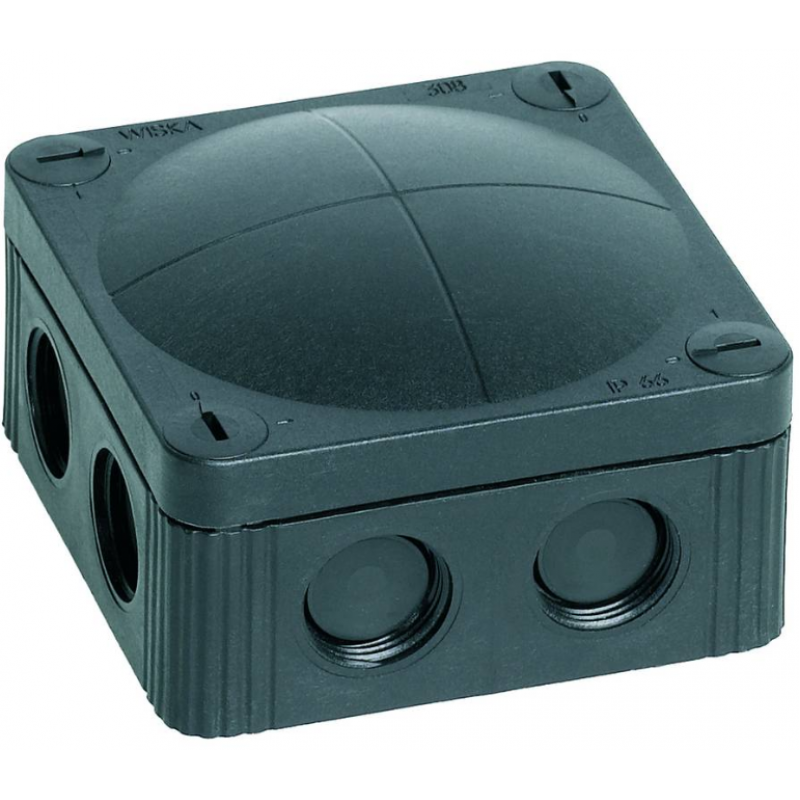

WISKA COMBI 85X85 IP66 BLACK JUNCTION BOX

Model: 10060580

  • £5.03 inc VAT

  • £4.19 ex VAT

In Stock

Fixing: With mounting clip or 4 internal openings outside of the sealing area

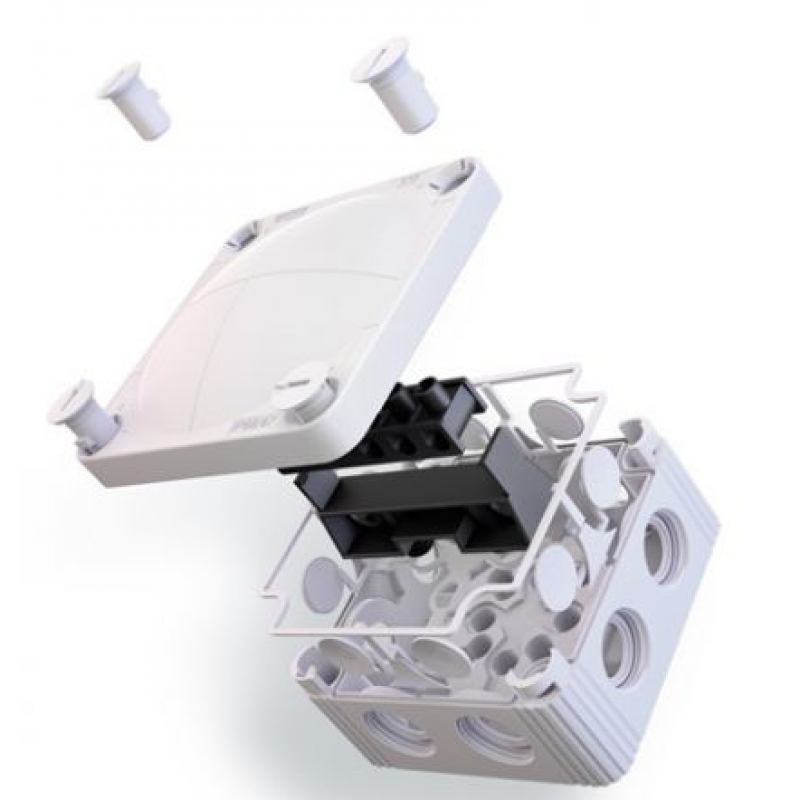

Equipment: 8 elastic self-sealing puncture-membranes for cable entry
8 integrated M20 thread for mounting without lock nut
4 captive cover screws
including mounting clip

MaterialPolypropylene
Material sealing gasketTPE
Temp. range min-30 °C
Temp. range max100 °C
Temperatures during install.-5 °C - 60 °C
Protection classIP66 / IP67
Glow wire test750 °C
Voltage400 V
Rated cross section4 mm²
Fixing4 internal openings
Ø cable diameter min3 mm
Ø cable diameter max12 mm

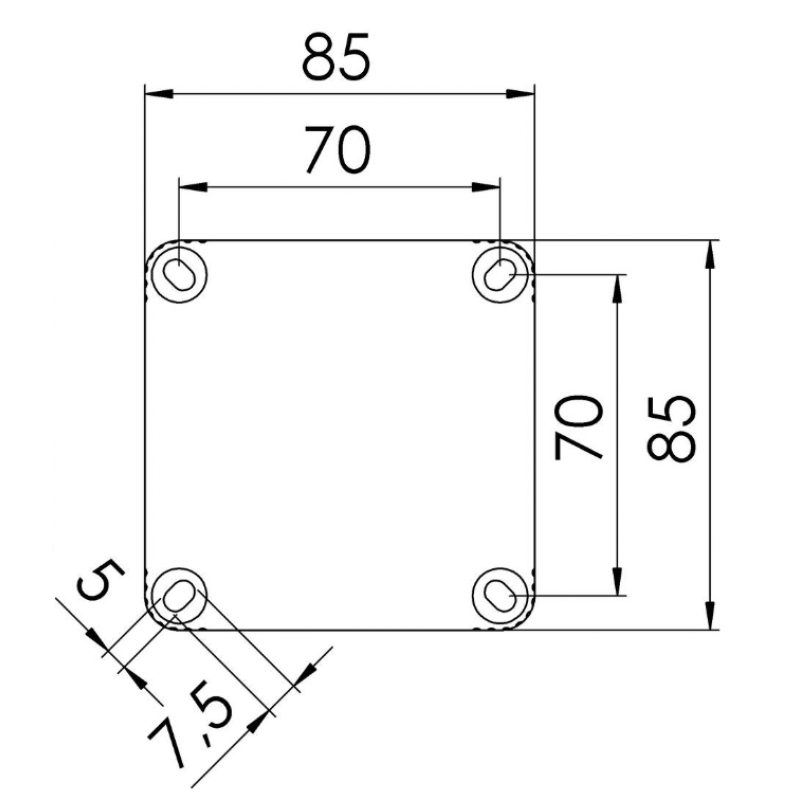

External dimensions LxWxH85 x 85 x 51mm

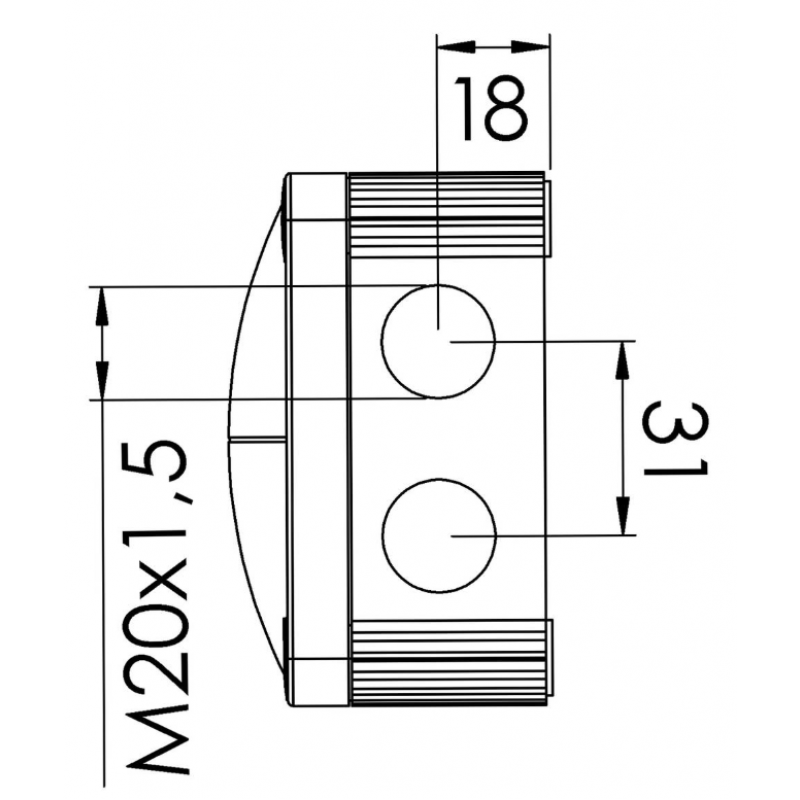

Type of cable glandM 20 x 1,5
Using for cable gland
Product ColorRAL 9005
WISKA-Order no.10060581
TypeCOMBI® 308 BK
Packing unit5
ETIM-ClassificationEC002600
