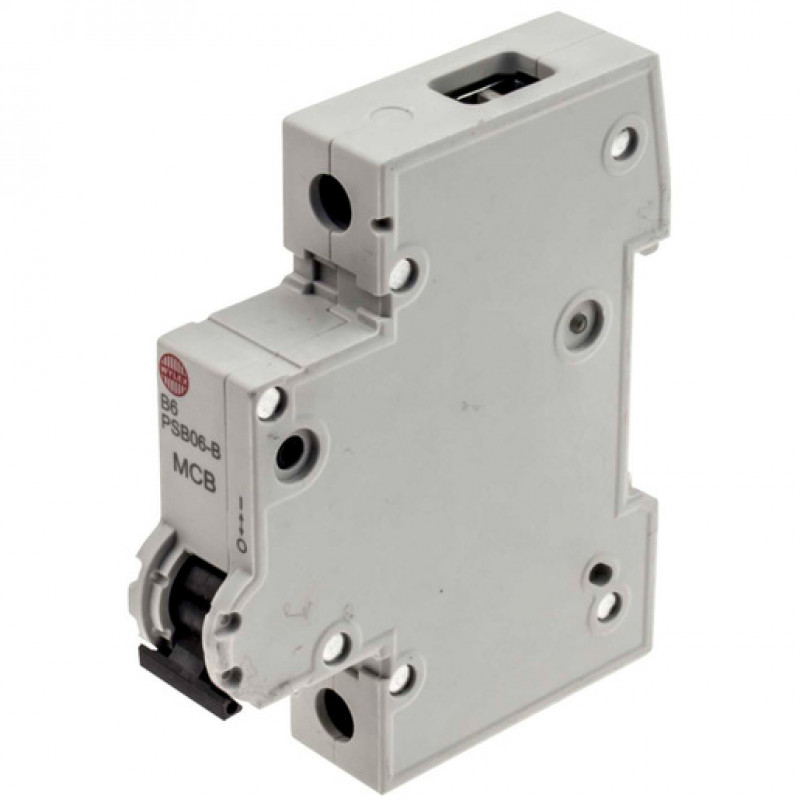

• WYLEX MCB 1P 6A 10KA PSB06-B

WYLEX MCB 1P 6A 10KA PSB06-B

Model: PSB06-B

  • £5.02 inc VAT

  • £4.19 ex VAT

In Stock

This Miniature Circuit Breaker is a thermal-magnetic current limiting type. Adjacent thermal-magnetic MCBs should not be continuously loaded at or approaching their nominal rated currents when mounted in enclosures. When the current flowing through the MCB reaches a predetermined level, the solenoid directly pulls in the plunger which forcibly separates the contacts and simultaneously releases the trip mechanism. The high speed current limiting action ensures that the MCB operates before the full prospective fault current is allowed to develop.

Key Features

  • · 18mm wide modules
  • · Compliant with BS EN 60898 and EN 60947-2
  • · Suitable for use within NH Distribution Board
  • · DIN rail mounting
  • · Easy to operate handle with a trip-free toggle mechanism
  • · 30°C calibration temperature

Miniature Circuit Breaker (MCB)
Miniature circuit breaker (MCB)
FeatureFeature details
Degree of protection (IP)IP20
Rated short-circuit breaking capacity Icu IEC 60947-2 at 400 V15 kA
Rated short-circuit breaking capacity Icu IEC 60947-2 at 230 V15 kA
Rated short-circuit breaking capacity Icn EN 60898 at 230 V10 kA
Rated short-circuit breaking capacity Icn EN 60898 at 400 V10 kA
Number of poles (total)1
Rated voltage400 V
Rated current6 A
Release characteristicB
Voltage typeAC
Frequency50 - 60 Hz
